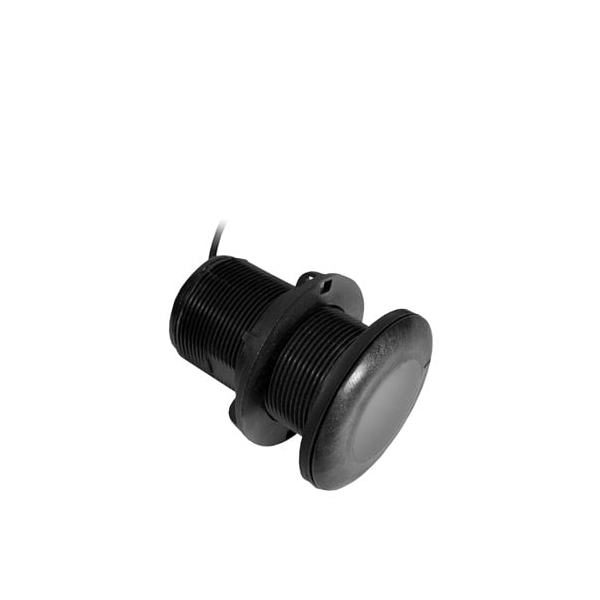

Garmin Airmar P19 Transducers
$229.99
This plastic thru-hull mount transducer provides excellent performance at high speeds; excellent on fiberglass and metal hulls. Do not use on wood hulls.
This plastic thru-hull mount transducer performs well at high speeds and is an excellent choice for fiberglass and metal hulls.
This 8-pin 500 W transducer has a depth of 900 ft; an operating frequency of 77/200 kHz; a beamwidth of 45/15 degrees.
Airmar P19 with 20° tilt is for boats with a 16 to 24 degree deadrise, while Airmar P19 with 12° tilt is for boats with an 8 to 15 degree deadrise.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
*Do not use on wood hulls.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Brand | Garmin |
| Tilt | Airmar P19 with 12° Tilt, Airmar P19 with 20° Tilt |
Product Specifications
Garmin AIRMAR P19 with 12º tilt (010-10218-21) Specs:
| TRANSDUCER FREQUENCY | 77/200 kHz |
|---|---|
| TRANSDUCER POWER | 300 W |
| TRANSDUCER BEAMWIDTH | 45°/15° |
| TRANSDUCER MAXIMUM DEPTH | 900 ft. |
| TRANSDUCER CABLE LENGTH | 30 ft. |
| TRANSDUCER DEPTH/SPEED/TEMPERATURE | Depth and Temperature |
| TRANSDUCER NUMBER OF PINS | 8-pin |
| TRANSDUCER SUPPORTED DEADRISE/TRANSOM ANGLES | 8°-15° degree deadrise |
Garmin AIRMAR P19 with 20º tilt (010-10218-22) Specs:
| TRANSDUCER FREQUENCY | 200 kHz |
|---|---|
| TRANSDUCER POWER | 300 W |
| TRANSDUCER BEAMWIDTH | 45°/15° |
| TRANSDUCER MAXIMUM DEPTH | 900 ft. |
| TRANSDUCER CABLE LENGTH | 30 ft. |
| TRANSDUCER DEPTH/SPEED/TEMPERATURE | Depth and Temperature |
| TRANSDUCER NUMBER OF PINS | 8-pin |
| TRANSDUCER SUPPORTED DEADRISE/TRANSOM ANGLES | 16°-24° degree deadrise |
- Hull Material: fiberglass or metal
- Outside Hull Hole Saw Size: 51mm or 2″
- Cored Fiberglass Hull/Hull Interior Hull Hole Saw Size: 60mm or 23/8“
