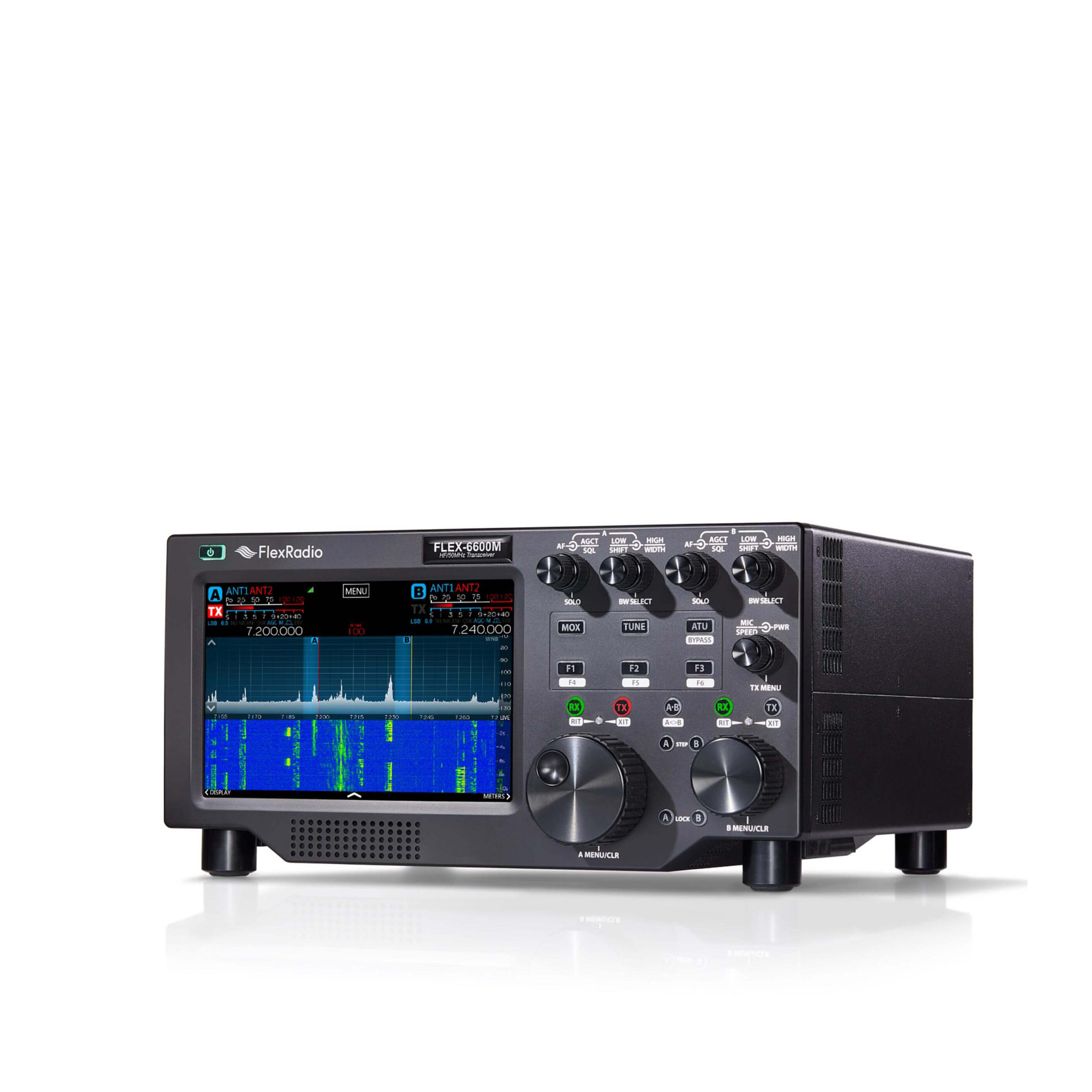

FLEX-6600M Transceiver

MPN: FLEX-6600M

This item has been discontinued. No longer available.

SKU: 11984 Category:

Signature Series HF/50 MHz Direct Sampling SDR Transceiver

All-in-One SDR Features

  • 100W PEP HF-6M Operation
  • All Modes/All Bands
  • Integrated Remote Operation With Maestro, PC/ Laptop, iPad® Or iPhone®
  • 4 Independent Band / Mode Receivers
  • Full Duplex Cross-Band Operation
  • True Diversity Reception
  • Two Receive-Only Ports
  • Two Transverter Ports
  • Economical SO2R Solution – (OTSPR) Support In One Radio
  • Contest Band Filters: >50 dB Rejection
  • Direct Sampling SDR 245.76 Msps – 16 Bit
  • 115 dB 2kHz RMDR
  • 10 MHz Reference Input With GPSDO Option
  • Optional MARS/CAP/Shares Expansion
  • Free-DV and D-Star (Optional)
  • Built In Antenna Tuner
  • Spectacular 8-Inch, 1920 X 1200 IPS Integrated Display
  • Touch Tune, Zoom, Pan, Controls At Your Fingertips
  • Ergonomically Optimized Controls With Full Dual VFO
  • Up To 14MHz Spectrum / Waterfall Bandwidth
  • Real-Time Spectrum / Waterfall
  • >155 dB Dynamic Range
  • External Display Output – Full 1920 X 1200 Resolution
  • Internal Speaker
Simply Beautiful
  • No PC required to operate the FLEX-6600M*
  • 8 inch 1920 x 1200 IPS Display
  • Up to four independent receivers
  • Up to four 14MHz spectrum displays
  • Ergonomic workflow
  • Wide spaced/single function controls
Plug & Play Remote**
  • No complex setup required
  • Operate anywhere, any time
  • Use a Maestro, iPad, iPhone or Laptop
  • Across the country or across the world
  • Complete control
Best in Class Performance
  • 115db RMDR
  • No noise fatigue
  • Ultra Low Phase Noise
  • Full Break-in QSK CW
  • Diversity Reception
  • SO2R in a box
  • Brick Wall Filters
  • Stunning transmit audio



Weight 14 lbs
Dimensions 14 × 13.25 × 6.74 in
Manufacturer Part Number FLEX-6600M

Specifications

Full Specifications

Receiver
  • 4 Independent Band/Mode Receivers (Max)
  • 1/2 kHz Reciprocal Mixing Dynamic Range (RMDR): 110/115 dB
  • ADC Bits/Sampling Rate: 16/245.76 Msps
  • Frequency Coverage: 30 kHz-54 MHz
  • Amateur Band Preselectors: 7th Order Contest Bands, 3rd Order Other
  • Cable-less Digital Audio (DAX/DAX IQ) Channels: 4/4
  • Receive Only Ports (Base/Including XVTR Ports): 2/4
  • Full Duplex RX/TX Operation
  • Simultaneous Receive on Two Antennas (e.g. 20m & 6m)
  • Single Radio SO2R Operation – No External Equipment
  • Diversity Reception
Transmitter
  • 160m-6m Transmitter Output: 1-100W(25W AM)
  • Harmonic Suppression (Typ): < -60 dBc
  • Transverter Ports: 2
  • Transverter Frequency Coverage/Power: 100 kHz – 54 MHz/0 to +10 dBm
  • Integrated Automatic Antenna Tuner Range: 3:1 SWR
  • Continuous MARS/CAP Coverage Optional

Spectrum/Waterfall

  • Internal Touch Panel Display Size Diagonal: 8-inch
  • Integrated Display Resolution: 1920×1200
  • External Display Resolution/Connection: 1920×1200/HDMI
  • Spectrum/Waterfall Displays (Max): 4
  • Spectrum/Waterfall BW (Min/Max): 1.2 kHz to 14MHz
  • Spectrum Dynamic Range (Max Zoom In): >155 dB
  • Spectrum Resolution Bandwidth (Min): 1.6 Hz/px
General
  • Modes (Note 1) SSB, CW, AM, SAM, FM, FREE-DV, RTTY, DIGITAL
  • D-STAR Mode: Optional ThumbDV
  • Integrated Remote Operation
  • Maestro, PC, MAC, iPhone, & iPad Client Options
  • Internal Speaker/Power: 2W Class D
  • Frequency Stability: (0C – 50C) 0.5ppm (TCXO)
  • GPS Disciplined Oscillator: Optional 5 x 10-12 Over 24 Hours
  • External 10MHz Reference Input
  • Power Supply Requirements: 13.8 VCDC +/- 15% (14 VDC Nom)
  • Dimensions: 6.74″H (17.1 cm) x 14″W (35.6 cm) x 13.25″D (33.7 cm)

*A PC may be required for use of 3rd party software such as loggers and digital modes programs **SmartLink Remote Requires SmartSDR V2.x License.
Requires internet connection. 1. RTTY and other digital modes use 3rd party software over DAX channels.

Package Includes

Package Includes:

  • FLEX-6600M Transceiver
  • FHM-2 Electret Hand Microphone
  • 6 ft. (1.8m) CAT 5 Ethernet cable
  • DC power cord with Anderson Powerpole™ connectors
  • SmartSDR for Windows installation and documentation CD
  • FLEX-6400/FLEX-6600 Quick Start Guide
