FELL Marine MOB+ xFOB Multifob
This item has been discontinued. No longer available.

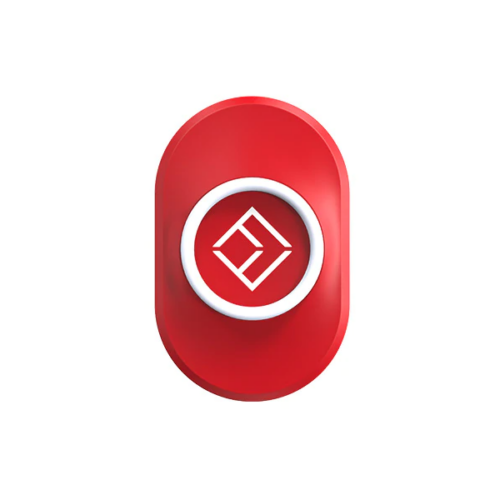

MOB+ xFOB is the heart of the MOB+ Wireless Cut-Off Switch.
MOB+ xFOB add more to your system
MOB+ xFOB is the heart of the MOB+ Wireless Cut-Off Switch. Such a small device, but packed with wireless technology – it is groundbreaking. The xFOB weighs in at only 10 grams and is only 1.74″ long. With the Universal Fit design, it can fit inside the xTAG, xBAND or in your pocket. The MOB+ xTAG can be worn around your neck, or attached to your life vest and garment with the standard lash tab Clip-on. With the xFOB you can virtually use the MOB+ Wireless Cut-Off Switch in any thinkable way.
Select your favorite way of using the MOB+Â Wireless Man OverBoard System, using the xBANDÂ or the xTAG option. We made them optional for you to choose your style and comfort.
Intelligent Man OverBoard System
In a world where electronics surrounds us it’s almost incredible that the corded cut-off switch still exists: MOB+ is an electronically controlled, wireless cut-off switch which can be used on all boats. It has finally arrived, the cut-off switch which gives the user not only all the benefits of electronics but freedom and additional safety as well. We recommend using MOB+ on boats with size of 40 feet or less.
Universal Fit Design
The xFOB fits perfectly inside the xBAND and the xTAG. This unique design allows you to decide how you want to use the MOB+ Wireless Man OverBoard System.
We recognize that all boaters use their boats differently. For us this was a focal point in our design process of the product. You should choose your own boating environment. With this in mind we created the xFOB to be universal across all our accessories for the MOB+ system.
General information about the system
As you step aboard your boat, press the xFOB to connect to the xHUB. A green light and an audio signal will confirm the connection and the engine can be started. Should a fall over board occur the engine will be shut down, caused by the xFOB being under water or more than 50 feet from the xHUB. 6 seconds after shut down passengers can restart the engine to save the person in the water. When leaving the boat press the xFOB once to disconnect.
Up to 20 xFOBs can be stored per xHUB (if more than 20 are paired the first ones which were paired will be deleted).
Up to four xFOB’s can be connected to the xHUB at the same time, with one unit acting as the captain’s stop unit, and the additional three as alarm units for passengers.
Your personal safety guard
The corded kill switch is rarely used as it ties you to a very limited space onboard. With the MOB+ Wireless Man OverBoard System you regain freedom – without losing safety.
The xFOB is your personal safety guard at sea. Being placed in the accompanying xBAND or xTAG, the xFOB unit does not inhibit any movement or motion. Should you fall into the water the engine(s) will stop in just one second.
MOB+
With the MOB+ Basepack you get one xFOB included. The MOB+ xFOB can be used with the xBAND or xTAG for your optimal comfort. The MOB+ supports up to 4 xFOBs connected at the same time.
Battery life time
The xFOB has up to 300 hours battery life time when connected.
Battery type: CR2032
Automatic timer function ensures the unit does not remain turned on should it be forgotten on the boat.
| Weight | 0.05 lbs |
|---|---|
| Dimensions | 2.75 × 4 × 0.5 in |
| Brand | FELL Marine |
Product Video
Product Specifications
Measurements and performance
| Weight | 10grams |
| Housing material | ASA / TPU / POM |
| Temperature range | Fro -15°C to 55°C |
| Voltage Source | Coin Cell Battery – 3V nominal |
| Power consumption | 0,3 µA in sleep (0,00033 W) 30 mA in active mode (0,098W) |
| Battery life | 300 hours continous usage |
Wireless performance
| Frequency area | 915 MHz FCC (US vers.) |
| RF signal (in) | 10 dBm max. |
| RF signal (out) | 10 dBm max. |
| 4D Antenna diversety |
Battery MOB Unit
| Battery type | CR2032 |
| Battery voltage | 3V lithium battery |
Certification US version (FCC)
| Radio – MOB Unit | R&TTE, EN 300 328, Maritime/CE |
| EMC – MOB Unit | R&TTE, IEC 60945, Maritime/CE |
| ABYC A-33 compliant |
Environment
| Immersion MOB Unit | IEC 60945, IP68, Martime/CE – 3 meters water resistant |
| RoHS (2002/95/EC) compliant materiales |
Safety
| Flammability – MOB Unit | IEC 60950 1&22, Martime/CE, UL94 |
Technical drawings
