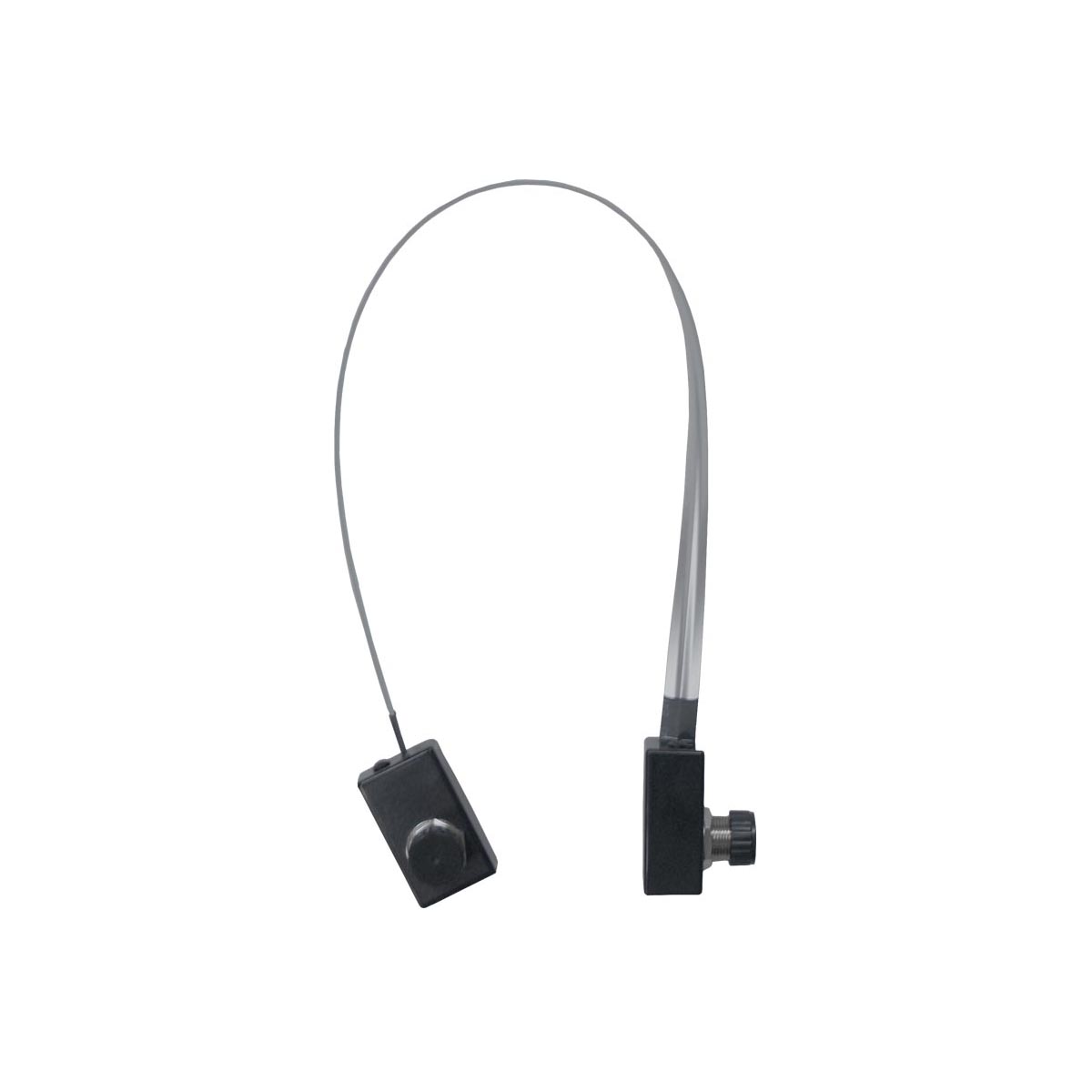

Diamond Antenna MGC50 Through Window/Door Cable Set
MPN: MGC50
$82.00
In stock
| Specifications: | |
| Frequency: | DC to 1500MHz |
| Max Power Rating: | HF to 50MHz: 150w (SSB), 50w(FM/CW), 144MHz: 40w (FM) , 440MHz: 30w (FM), 1200 MHz: 10w (FM) |
| Length: | 19.7″ (between connectors) |
| Weight: | 102g |
| Connector: | UHF Female to UHF Female |
| VSWR: | HF up to 500MHz: Less than 1.2 500 to 1000MHz : Less than 1.3 Up to 1000MHz: Less than 2.0 1200MHz: Less than 1.7. |
| Impedance: | 50 ohms |
| Insertion Loss: | 144MHz: Less than 0.3dB 440MHz: Less than 0.6dB 1200MHz: Less than 1.6dB |
| Weight | 0.31 lbs |
|---|---|
| Dimensions | 10 × 6 × 1.25 in |
| Brand | Diamond Antenna |
