Diamond Antenna D3000N
MPN: D-3000N
$209.00
Please note: Due to the size of this antenna, additional shipping charges will apply.
Out of Stock (On Order)
Please note: Due to the size of this antenna, additional shipping charges will apply.

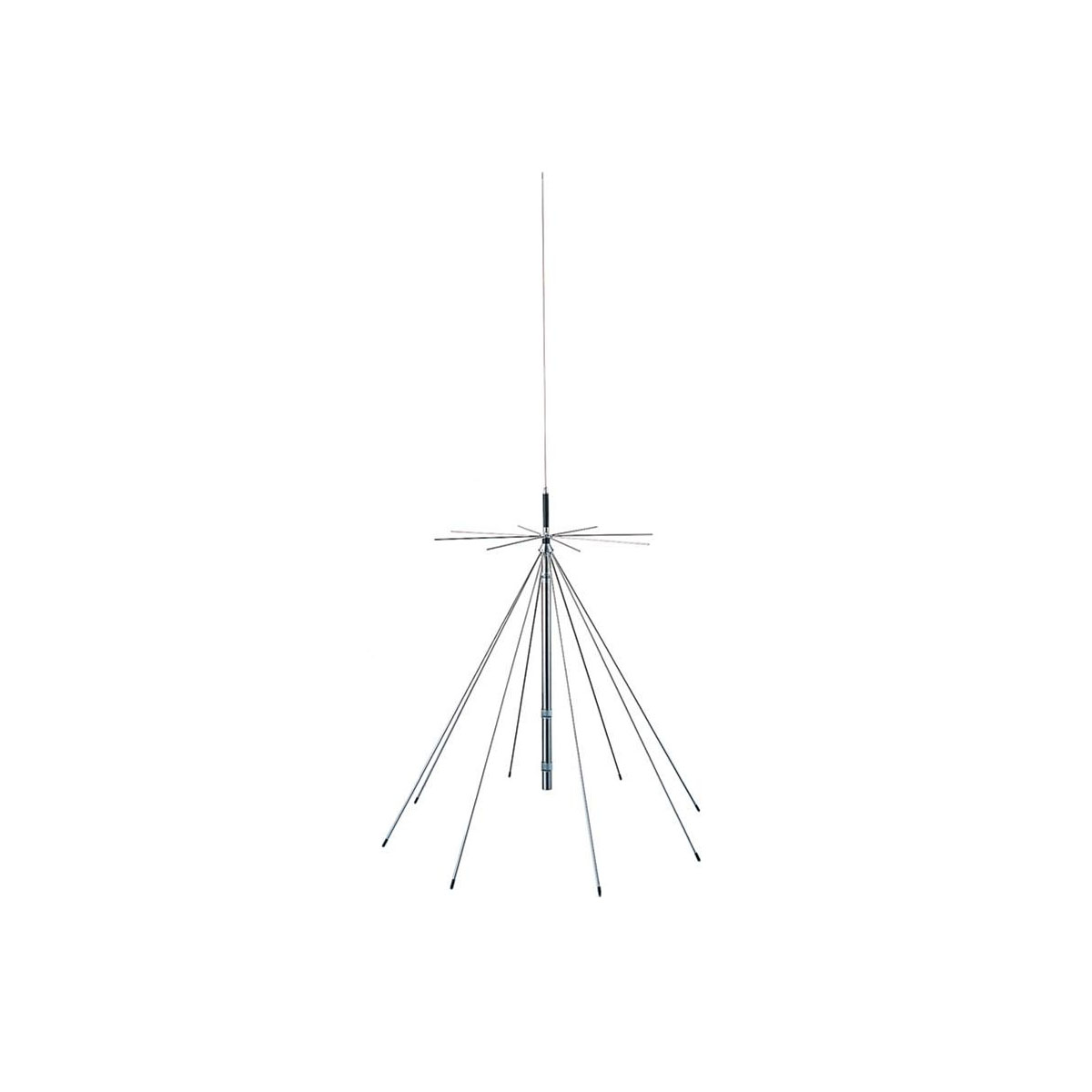

The D3000N Super Discone Antenna is an ultra-wideband antenna covering amateur radio, commercial 2-way, cellular, air traffic control and various utility frequency bands. Rust-free stainless steel is employed in major component parts making the antenna rust resistant and durable.
Special Features:
- Ultra-wideband design 25 to 3000 MHz receive, 50-1200 MHz transmit (6m tunable for transmit)
- Compact and lightweight design enables antenna to be installed on balcony railing at an apartment or condominium
- Ideal for 2m, 1-1/4m, 70cm, 33cm and 23cm amateur bands
- Excellent “shop” antenna for testing various transmitters on a single coax
- Can be made further compact and lightweight by removing the top loading coil if 25-50 MHz reception is not required
Remarks: Adjustable 50-54 MHz.
| Weight | 2.51 lbs |
|---|---|
| Dimensions | 33 × 4.5 × 1.5 in |
| Brand | Diamond Antenna |
Product Specifications
| Specifications: | |
| Bands: | 25-1300 MHz |
| Gain dBi: | 2 (nominal) |
| Max Power Rating: | 144 MHz up: 200 watts 6m: 20 watts FM, 50 watts PEP |
| Height: | 67″ |
| Connector: | Type-N |
| Element Phasing: | Wideband Discone |
