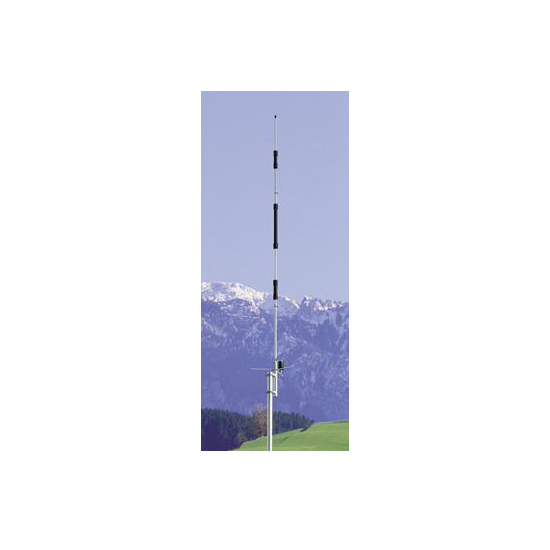

Cushcraft AR-270B Dualband Vertical Ringo Antenna

MPN: AR-270B

$404.00

Please note: Due to the size of this antenna, it can only ship via UPS and extra shipping charges will apply.

In stock

SKU: 9632 Category:

Vertical, Dualband, Indep 2m, 70cm, 5, 7.5

AR270B 5.5/7.5 dB Dual Band Ringo

This model gives very high gain with a low angle of radiation and it is only 7.7 feet (2.35 m) high. The AR270B is computer optimized with two 5/8 wavelength collinear elements on 2 meters and four 5/8 wavelength elements on 70 cm. It is broad-banded for minimum SWR on both bands. It is easy to assemble with three rugged aluminum tubing sections, a durable mast mount and factory sealed coils for best performance.

Weight 3.25 lbs
Dimensions 44 × 4.25 × 3 in
Brand

Cushcraft
Manufacturer Part Number AR-270B

Specifications

Cushcraft AR-270B Specifications
Frequency, MHz:
144-148, 430-450
Gain, dBi:
5.5 (7.5)
Height, ft (m):
7.7 (2.3)
Horizontal Radiation Pattern Degrees:
360
SWR 1.2:1 Typical
2:1 Bandwidth, MHz
>4, >15
Power Rating, Watts FM:
250, 250
Mast Size Range, in (cm):
1.25 – 2 (3.2 – 5.1)
Radial Length, in (cm):
6.75 (17.1)
Wind Load, ft sq (m sq)
0.47 (0.044)
Weight, lb (kg)
2.4 (1.09)

Product Guides & Documentation

Cushcraft AR270B Manual
