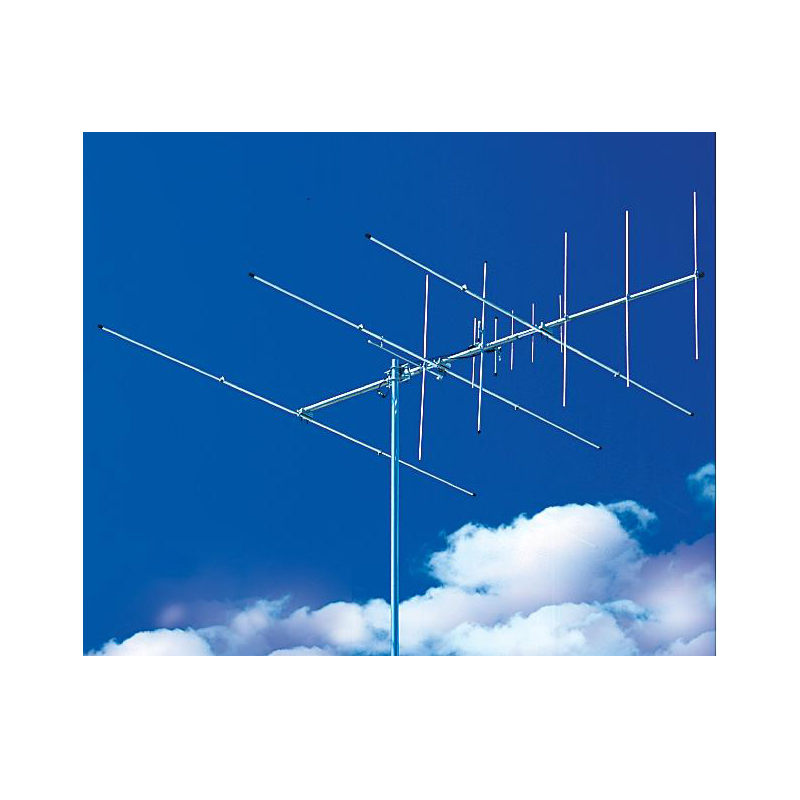

Cushcraft A6270-13S Triband Antenna

MPN: A6270-13S

$622.00

Please note: Due to the size of this antenna, it can only ship via Purolator and extra shipping charges will apply.

In stock

SKU: 9215 Category:

2M/440/6M, TRIBAND, 5/5/3 ELEMENT, 10/10/8 DBI, 350/1KW

Cushcraft’s multiband directional yagi is designed to provide hobbyists who have limited tower or mast space with directional antenna performance on three of the most popular bands. The A627013S combines 6 meters, 2 meters and 70 centimeters on one boom. The 2m and 70cm interlaced Yagis are designed to share a common feed line. An independent feed line drives the 6m portion.

Outstanding performance thanks to Cushcraft’s unmatched multiband design technology and experience.

Rugged stainless steel mounting hardware is easy to install and maintain.

Weight 15 lbs
Dimensions 52 × 4.75 × 4.75 in
Brand

Cushcraft
Manufacturer Part Number A6270-13S

Specifications

Cushcraft A6270-13 Specifications
Frequency, MHz:
50-54, 144-148, 430-450
No. Elements:
3, 5, 5
Forward Gain, dBi:
8, 10, 10
Front to Back Radio, dB:
20, 20, 18
SWR 1.2:1 Typical
2:1 Bandwidth, MHz
>1, >4, >10
Power Rating, Watts PEP:
1000, 350, 350
3 dB Beamwidth, Degees
E Plane
H Plane
48.5, 48.5
60, 60
Boom Length, ft (m):
8.66 (2.66)
Longest Element, in (cm):
117 (300)
Turning Radius, ft (m):
6.16 (1.87)
)Mast Size Range, in (cm):
1.25 – 2 (3.2 – 5.1)
Wind Load, ft sq (m sq)
2.52 (0.32)
Weight, lb (kg)
9.5 (4.3)

Product Guides & Documentation

Cushcraft A6270-13S Manual
