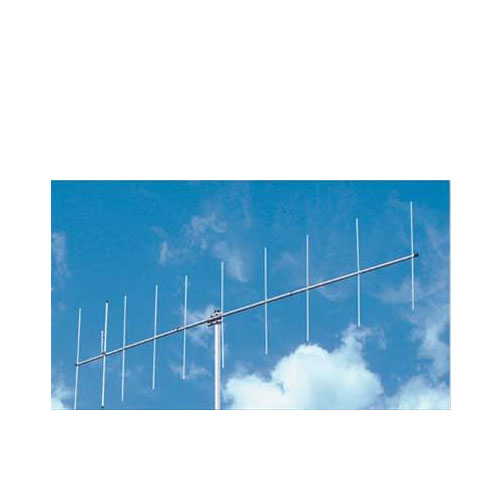

Cushcraft A148-10S 2M 10 Element Yagi Antenna

MPN: A148-10S

$326.00

Please note: Due to the size of this antenna, it can only ship via Purolator and extra shipping charges will apply.

In stock

SKU: 11306 Category:

2M, YAGI, 10 ELE, 13.2 DBI, 1KW

The A148-10S is one of Cushcraft’s best value designs with excellent gain and front-to-back ratio. Use it for long range FM or full band 2 meter operation

Weight 6 lbs
Dimensions 58 × 4.75 × 2.5 in
Brand

Cushcraft
Manufacturer Part Number A148-10S

Specifications

Cushcraft A148-10S Specifications
Frequency, MHz:
144-148
No. Elements:
10
Forward Gain, dBi:
13.2
Front to Back Radio, dB:
24
SWR 1.2:1 Typical
2:1 Bandwidth, MHz
>4
Power Rating, Watts PEP:
1000
3 dB Beamwidth, Degees
E Plane
H Plane
 40
46
Boom Length, ft (m):
12 (3.6)
Longest Element, in (cm):
40.3 (102.4)
Turning Radius, ft (m):
6 (1.8)
Mast Size Range, in (cm):
1.25 – 2 (3.2 – 5.1)
Wind Load, ft sq (m sq)
1.21 (.11)
Weight, lb (kg)
6 (2.7)

Product Guides & Documentation

Cushcraft A148-10S Install Instructions
