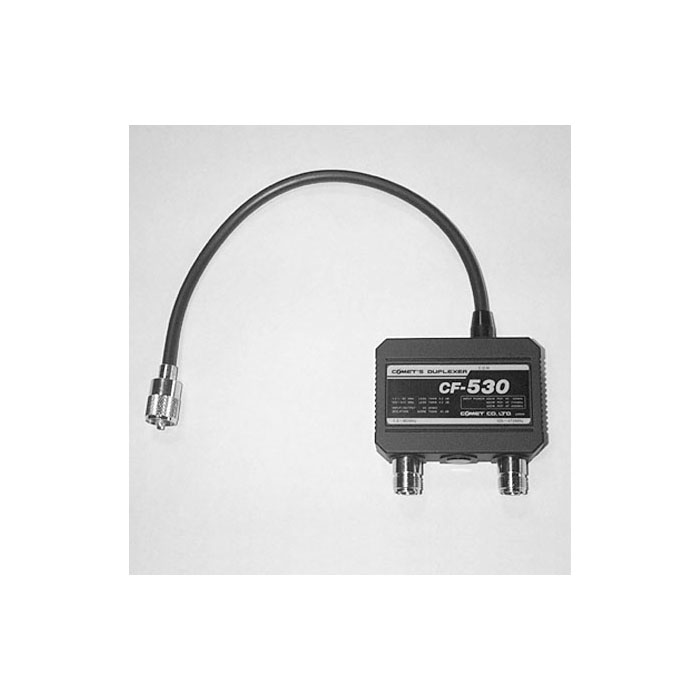

This version has a coax lead and PL-259 connector on the COMMON port.
This allows you to split the common connector on the FT-8900 back into two separate connectors: One connector for an HF-6M antenna, the other connector for a 2M-440MHz antenna.
If desired, the 2M-440MHz connector on the CF-530C can then be split again if you want to use separate 2M and 440MHz antennas.
Band Pass: 1.3-90MHz125-470MHz
Ins. Loss:Â 0.2dB0.2dB
Max Power:Â 600w PEP600w
Isolation:Â More than 45dB
CONNECTORS:
- Output: PL-259
- Low In: PL-239
- High In: SO-239
