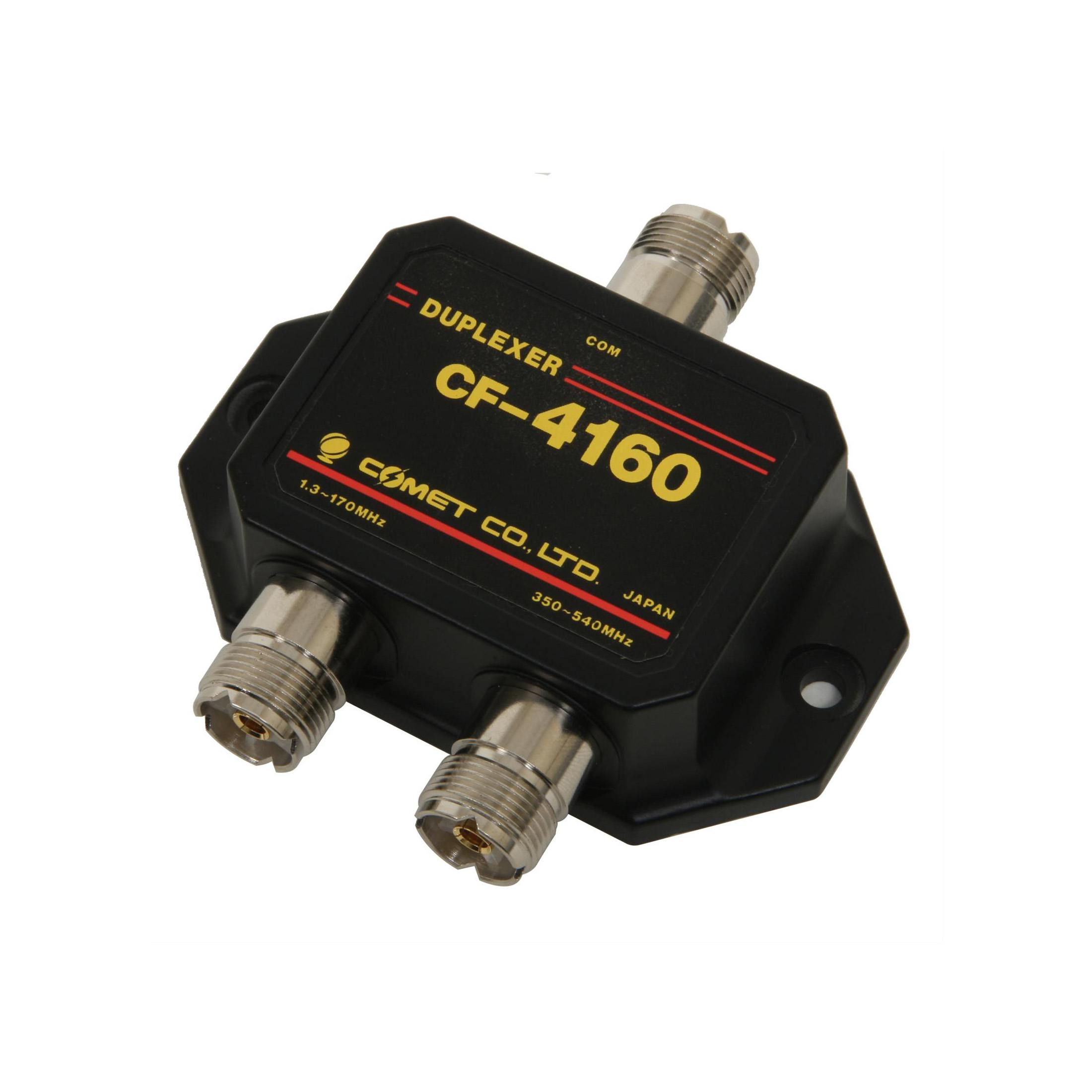

Comet CF-4160 Series VHF/UHF Duplexers
$68.00 – $81.00
| Band Pass | Ins Loss | Max Power | |
|---|---|---|---|
| Low Pass: | 1.3-170MHz | 0.1dB | 800W PEP |
| High Pass:Â | 350-540MHz | 0.2dB | 500W PEP |
Isolation: 60dB mimimum
CF-4160J Features:
- UHF-Female connectors makes it easy to use your own jumpers between your radio and the duplexer.
- Common: SO-239
- Low Pass: SO-239
- High Pass: SO-239
CF-4160I Features:
- Common: SO-239
- Low Pass: PL-259
- High Pass:Â N-Male
CF-4160N Features:
- All N-female connectors allows low-loss N-type connectors with a jumper length of your own choosing.
- Common:Â N-Female
- Low Pass:Â N-Female
- High Pass:Â N-Female
| Weight | 0.4356 lbs |
|---|---|
| Dimensions | 3.5 × 3.5 × 1.25 in |
| Brand | Comet |
| Duplexer Version | Comet CF-4160I, Comet CF-4160J, Comet CF-4160N |
