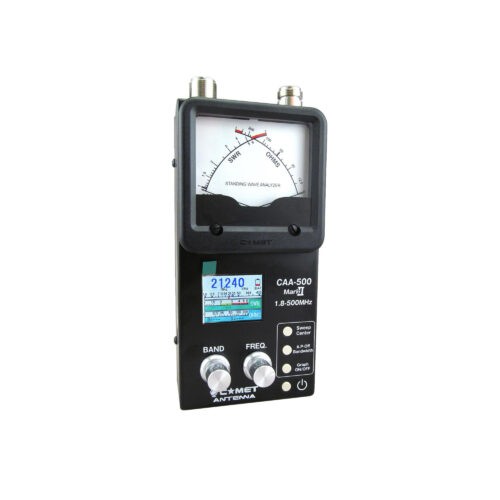

Comet CAA-500 MARK II SWR/Impedance Analyzer

MPN: CAA-500 Mark II

$599.99

Highly accurate analog cross needles display SWR and impedance simultaneously.

In stock

SKU: 9254 Category:

The new analyzer retains the same analog cross needles to display SWR and impedance, but ADDS a full color TFT LCD display screen providing graphic and numerical SWR along with total impedance with R and X values.

Features:

AUTO SWEEP MODE

Automatically graphs the SWR on the LCD display.   Choose any one of the pre-set amateur band frequency ranges and press the sweep button…in about 30 seconds the SWR graph is completed and displayed.

MANUAL SWEEP MODE

Choose the band and manually set the band-width and manually sweep the chosen frequency range.

MULTIPLE MANUAL SWEEPS

Should you want to make an adjustment to the antenna length, to the position, height above ground, a gamma match adjustment, etc…you can overlay 5 manual sweep results in different colors!  Instantly graph and see exactly what happened after each adjustment!

Weight 2.29 lbs
Dimensions 9.75 × 5.5 × 4.5 in
Brand

Comet
Manufacturer Part Number CAA-500 Mark II

Product Specifications

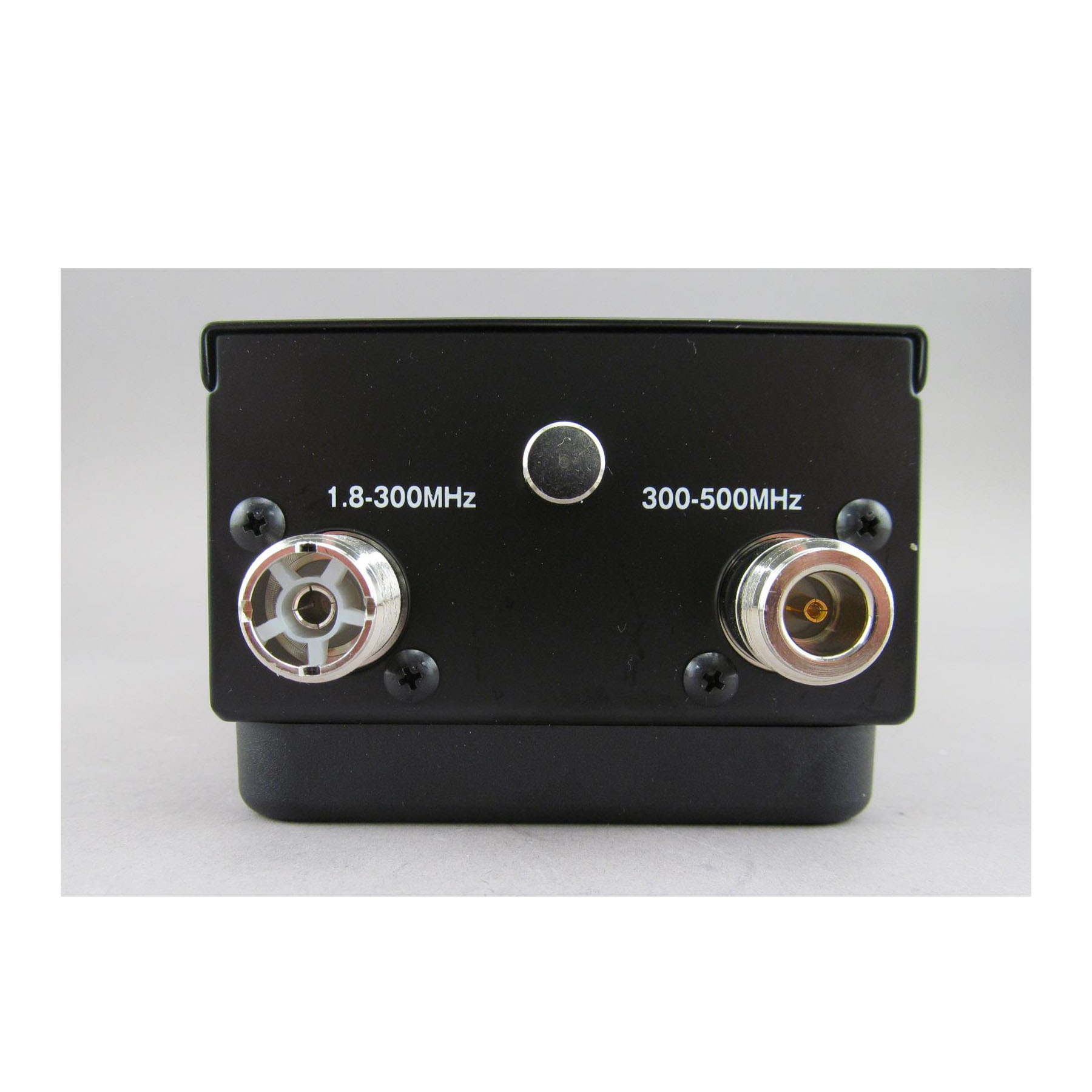

Range: 1.8 – 500MHz (including 222MHz band)

  • RF output level:  0dBm 1 mW
  • Measured SWR Range:  Analog meter 1.0 – 6.0:1 , LCD display 1.0 – 9.9:1
  • Impedance measurements: 12.5-300 ohms
  • Reactance range:  0 – 500 Ohms (absolute value) 1.8 -190MHz
  • Battery indicator and selectable Auto-Power-Off timer
  • Operates up to 9 hours continuous using six AA Alkaline or NiMH cells (not included) or use an external 8-16VDC 200ma power source (DC cable included)
  • Internal trickle charger option when using NiMH batteries
  • Size: 3.5 x 7.75 x 2.65 inches (overall)
  • Weight: 2lbs 2oz with alkaline batteries installed
  • Available from all major Ham Radio Dealers in the US.

The CAA-500MarkII is the primary tool for any antenna adjustment or diagnostic project.

Specifications subject to change without notice
