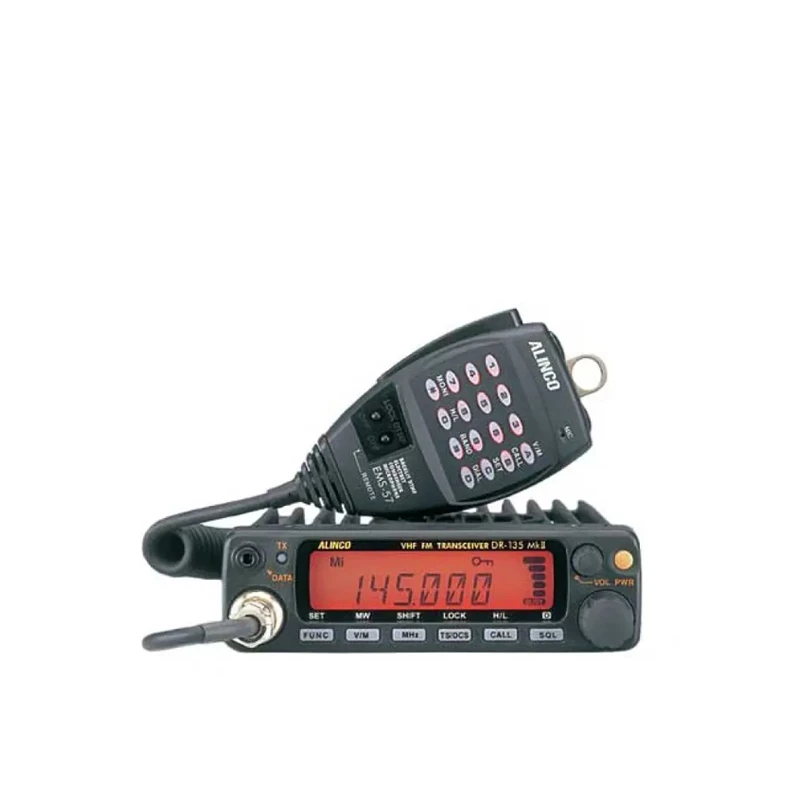

Alinco DR-135T VHF FM Mobile Transceiver

MPN: DR-135T

This item has been discontinued. No longer available.

SKU: 7211 Category:

Features of DR-135T

  • 50 watts, H/M/L power settings
  • 100 memory channels
  • Front panel data port
  • Rear panel DSUB9 computer connection
  • No need to remove mic for packet operation
  • Ignition key on/off feature
  • CTCSS, DCS encode+decode, DTMF encode and Tone-burst are all standards
  • Clean, clear Alinco audio
  • Super-wide 7 character alphanumeric display
  • Wide and narrow FM modes (16K0 & 8K50F3E)
  • Theft alarm feature
  • A large, palm-fitting commercial-grade backlit microphone with a metal connector (not a modular plug) as well as direct frequency input and direct multi-function access such as monitor, call channel, power setting, memory to VFO plus more!
  • Stays in mode you select (voice/packet) through
    power off cycles
  • Ten autodial memories
  • and more….at Low Alinco price!
Weight 4.51 lbs
Dimensions 13.5 × 2.5 × 8.25 in
Brand

Alinco
Manufacturer Part Number DR-135T

Specification

DR-135T General Specs
Frequency range
TX(T): 144-147.995MHz (FM)
RX(T): 118-135.995 MHz (AM)
136-173.995MHz (FM)
TX&RX(E): 144-145.995MHz
Operating mode
16K0F3E (FM)/8K50F3E (Narrow-FM)
F1(9600bps)/F2(1200bps)/10F3 * 1
/A3E (RX only DR135TMkII)
Channel steps
5, 8.33, 10, 12.5, 15, 20, 25, 30, 50 KHz
Memory channel
100 channels + 1 quick recall (CALL)
Antenna impedance
50ohm unbalanced
Frequency stability
+/- 2.5ppm TCXO
Power supply requirement
13.8V DC +/- 15% negative ground
Current drain
Approx. 11.0A TX High
Approx. 0.4A squelched
Usable temperature range
-10 – +60c (14 – 140F)
Dimensions (w/o projection)
142(W) x 40(H) x 174(D) mm
5.59″(W) x 1.57″(H) x 6.85″(D)
Weight
Approx. 1.0Kg (35.3oz)
CTCSS tone
encoder/decoder 39 tones
Digital Coded Squelch
encoder/decoder 104 codes
DR-135T Transmitter Specs
Output power
Approx. 50W (HI)
Approx. 20W (MID)
Approx. 5W (LOW)
Modulation system
Variable reactance frequency modulation
Spurious emission
Less than -60 dB
Maximum frequency deviation
+/- 5 KHz (FM) / +/- 2.5 KHz (NFM)
DR-135T Receiver Specs
Receive system
Double-conversion superheterodyne
Sensitivity (-12dB SINAD) *2
Less than -16.0dBu
Intermediate frequency
1st IF 21.7 MHz, 2nd IF 450 KHz
Selectivity *2
-6dB: 12KHz or more
-60dB: 28KHz or less (FM)
-6dB: 6KHz or more
-60dB: 16KHz or less (NFM)
Audio output power
More than 2W(8ohm 10%THD)
Note:
* 1 Optional units required
* 2 Typical within the amateur radio band(s

Package Includes

In the Box:

  • DR-135T
  • Microphone
  • DC power cable with fuse holder
  • Mobile mounting bracket
  • Hardware kit for
  • Alarm cable A (with wire)
  • Alarm cable B (extension use)
  • Theft alarm stickers
  • Instruction Manual
