RAM-VB-186ST1-SW2: RAM No-Drill Mount for ’19-23 Ram 1500 Pickup Trucks (5th Gen)

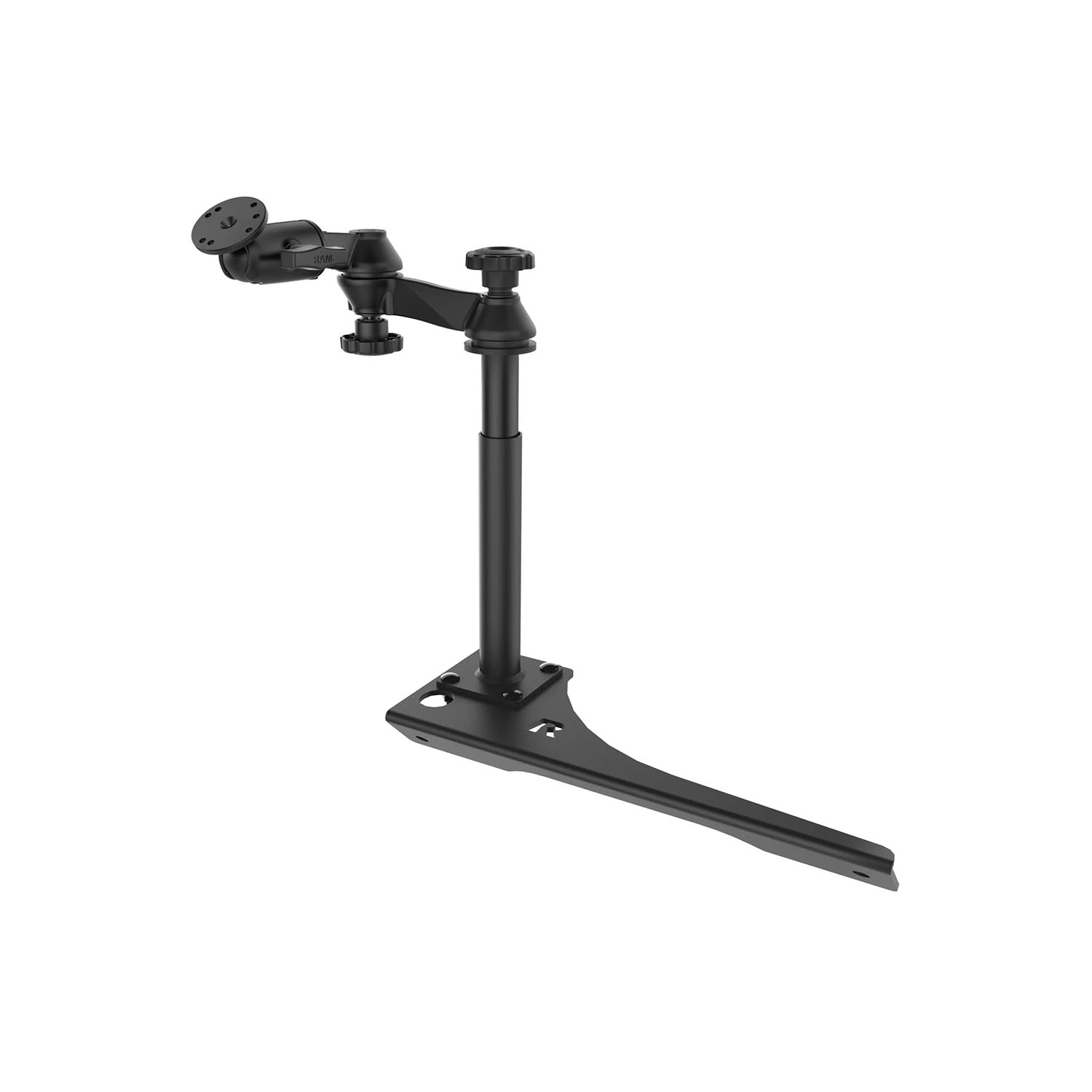

This RAM® No-Drill™ mounting system installs quickly and easily into the 5th Gen Ram 1500 (2019 2023) using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. The round ball base attached to the end of the swing arm supports a variety of tablet and laptop holders, while RAM® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation.

RAM-VB-186ST1-SW2 FEATURES

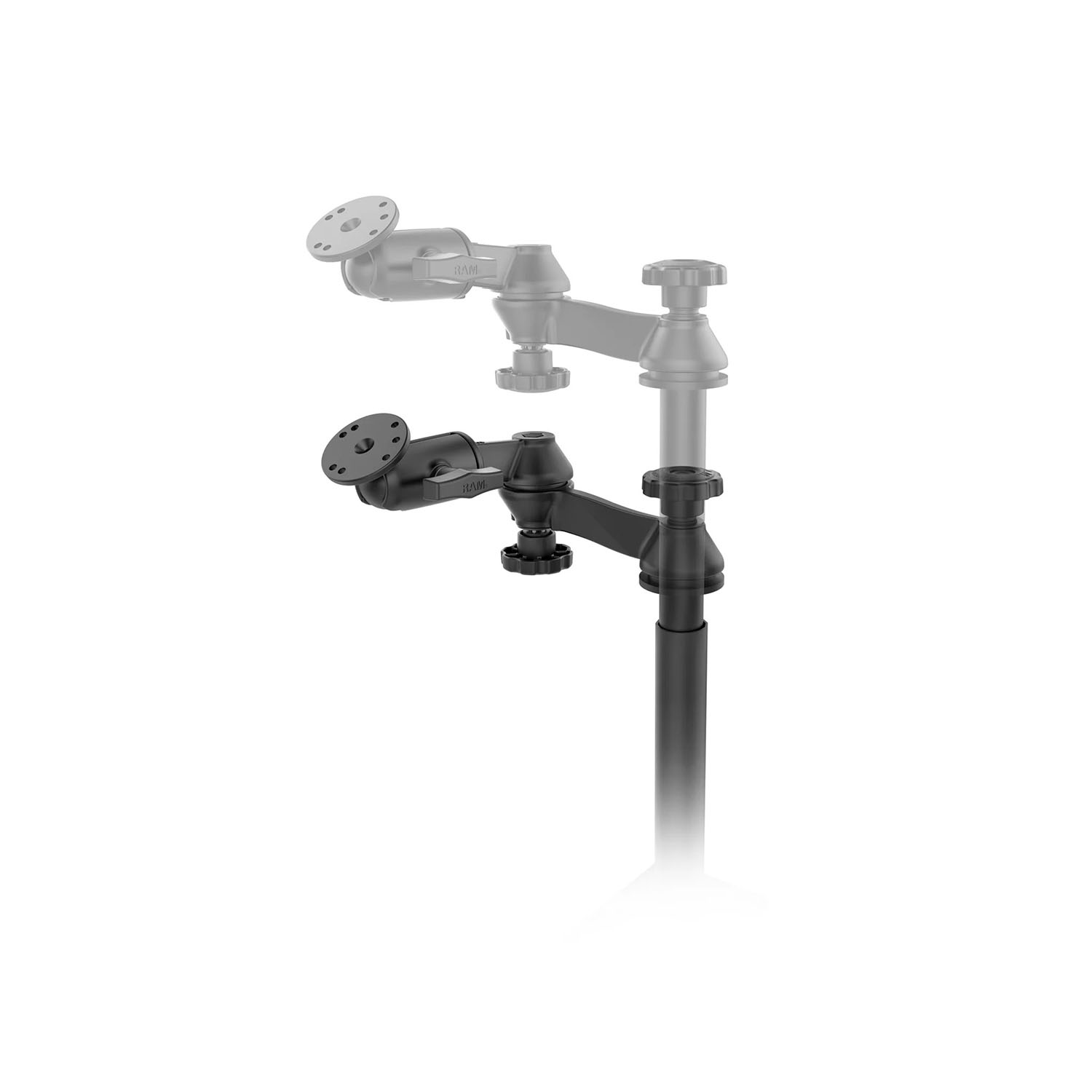

• RAM® No-Drill™ base offers low-profile mounting; telescoping pole allows for height adjustments

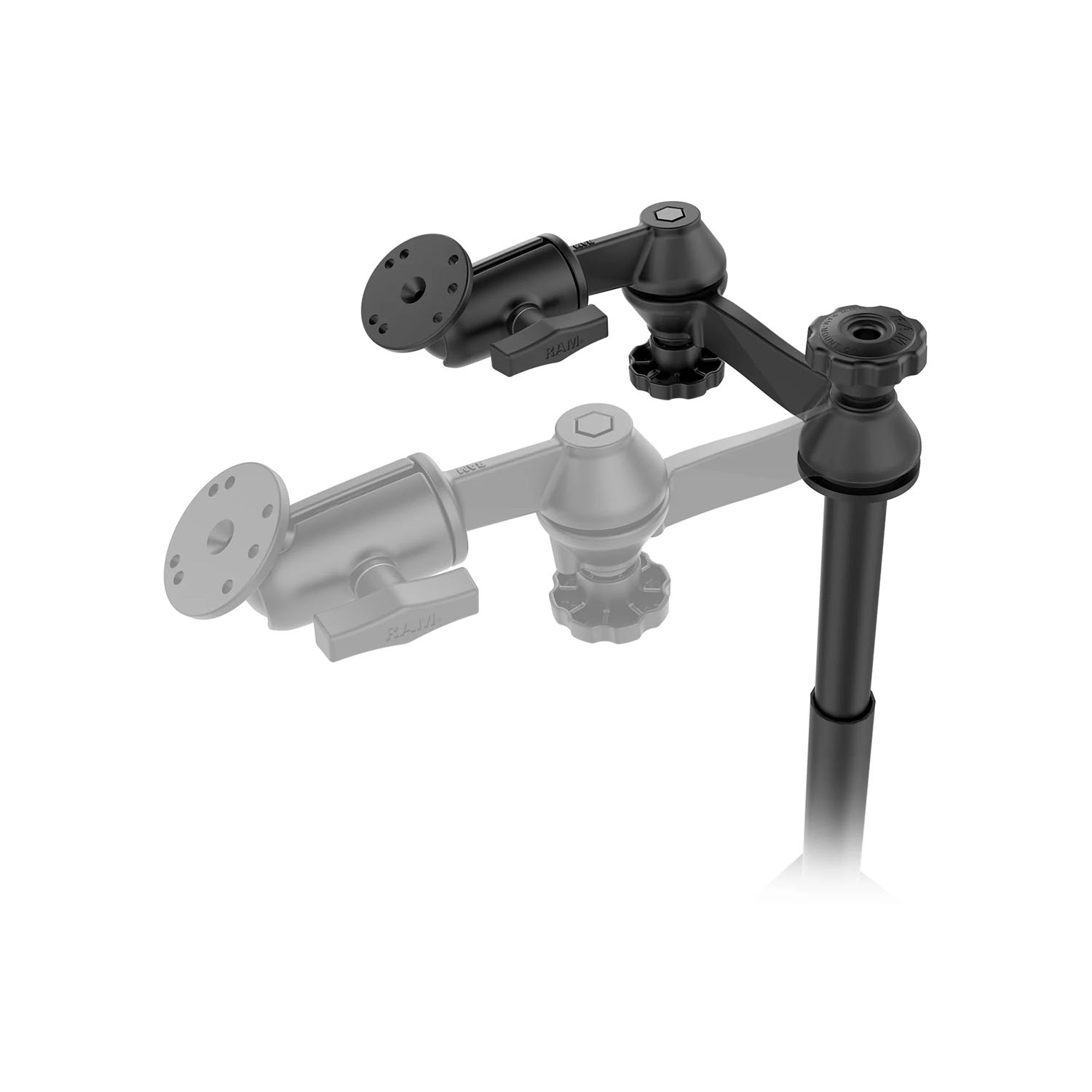

• Dual articulating swing arm allows for ideal device placement; compatible with a variety of tablet and laptop holders
• Made of powder-coated steel and marine-grade aluminum
• Backed by a lifetime warranty

VEHCILE COMPATIBILITY

• Dodge RAM 1500 (2019-2023)

HARDWARE INCLUDED

• Assembly Hardware
• (2) M10-1.5 x 70mm Hex Bolts
• (2) 1.68″ Stand-Offs
• (2) 3/8″ Fender Washers

HOLE PATTERN

• 4-Hole AMPS: 1.181″ x 1.496″
• 3-Hole 120-Degree: 1.812″ Diameter
• Seat Bolt Distance: 15.125″ center to center

PLATE SIZE

• 2.5″ Diameter

BALL SIZE

• C Size (1.5″)

WEIGHT CAPACITY

• Standard Use: 4 lbs
• Heavy-Duty Use: 3 lbs

MATERIALS

• Powder coated steel
• Marine grade-aluminum

WEIGHT

• 12.0 lb
