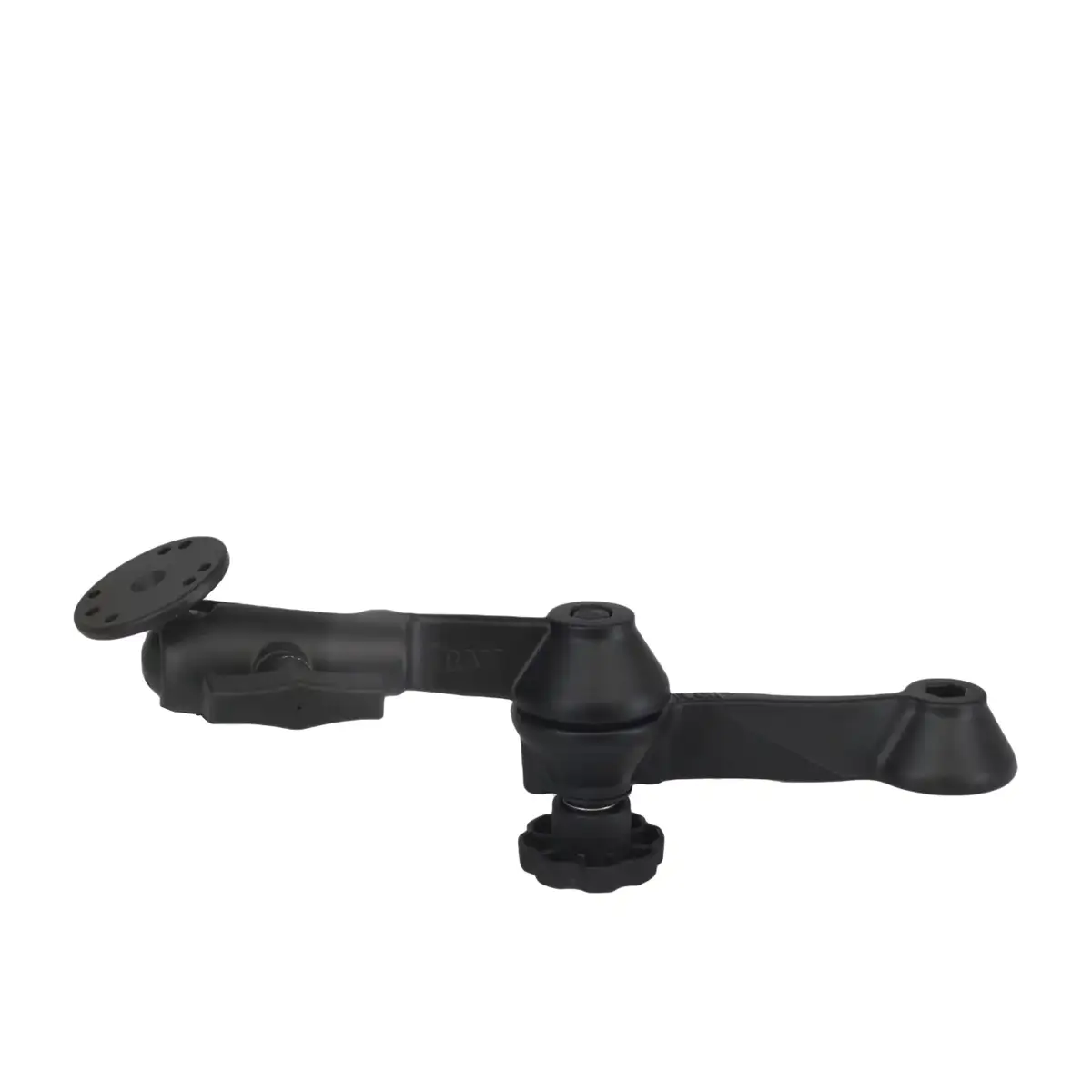

RAM-VB-109-1U: RAM 12″ Long Double Swing Arm with Round Plate

The RAM-VB-109-1U consists of two 6″ long single swing arms, Tele-Pole™ connection hole and 2.5″ round base that contains the universal AMPs hole pattern. The two swing arms connect with a bolt and knob system. With a simple turn of the knob you can pivot the swing arms at this center point and the tighten the knob to lock the arms in place.

RAM-VB-109-1U COMPONENTS

RAM-VB-109-3U + RAM-VB-109-5U

PRODUCT DIMENSIONS

• Swing Arm Length: 12″

HOLE PATTERN

• 4-Hole AMPS: 1.181″ x 1.496″
• 3-Hole 120-Degree: 1.812″ Diameter

PLATE SIZE

• 2.5″ Diameter

BALL SIZE

• C Size (1.5″)

WEIGHT CAPACITY

• Standard Use: 4 lbs
• Heavy-Duty Use: 3 lbs

MATERIALS

• Marine-grade aluminum
