RAM-VB-104-SW1

No-Drill™ Laptop Mount for the Dodge RAM 1500, 2500 & 3500

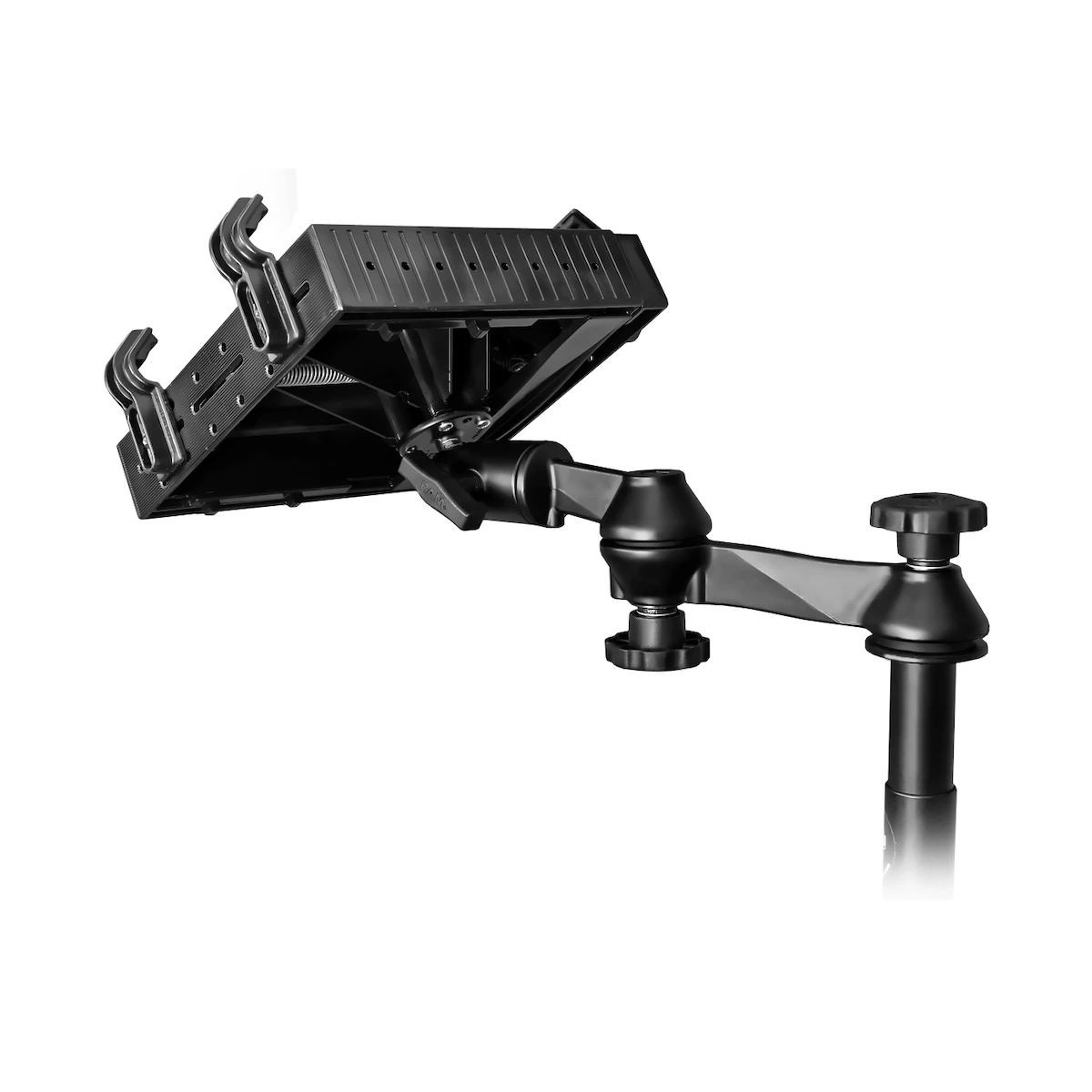

This No-Drill™ Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray™ is spring loaded to accommodate 10″ to 16″ wide laptops & (17″ wide screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics.

Compatible Vehicles:
Dodge Ram 1500 (2002-2007)
Dodge Ram 2500/3500 (2003-2007)

Placement of Mount:
Passenger side floor, in front of seat

Drilling Requirements:
No – attaches to seat studs

Seat Configuration:
Bucket/Bench

Weight:
20.0 lbs.

Material:
High Strength Composite and Powder Coated Steel

Notes:

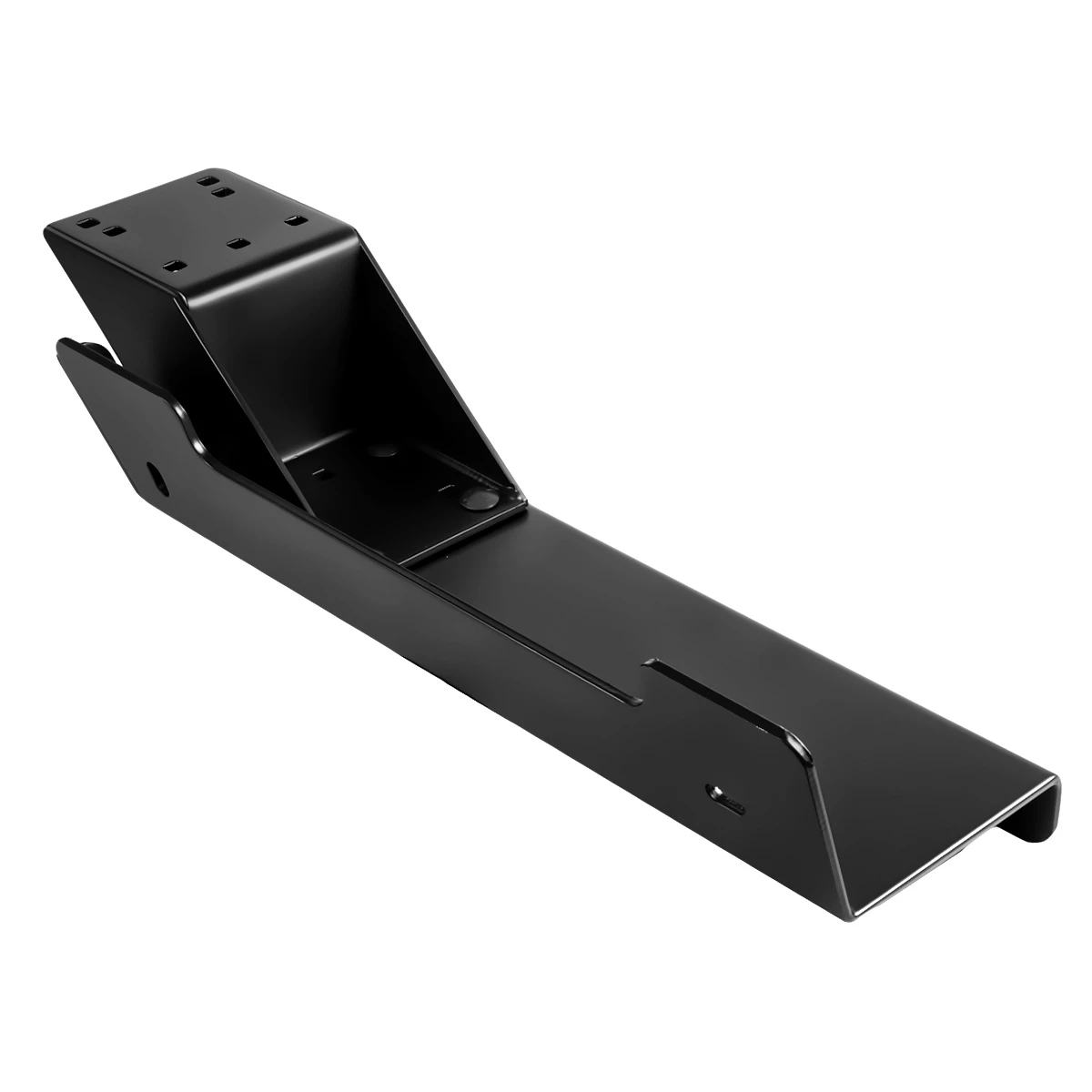

This base will not interfere with factory installed console or 4WD lever. One 4” riser is included with this vehicle base. Riser allows optimized placement of mount with a minimal amount of intrusion of passenger leg space. This base will not fit trucks with power take-off (PTO) on the transmission. If your vehicle has the PTO accessory on the transmission, you will need the RAM-VB-178-SW1.

If the Tough-Tray™ Laptop Cradle is intended to hold a laptop or device while the vehicle is in motion, we recommend the Secure-N-Motion™ kit.
