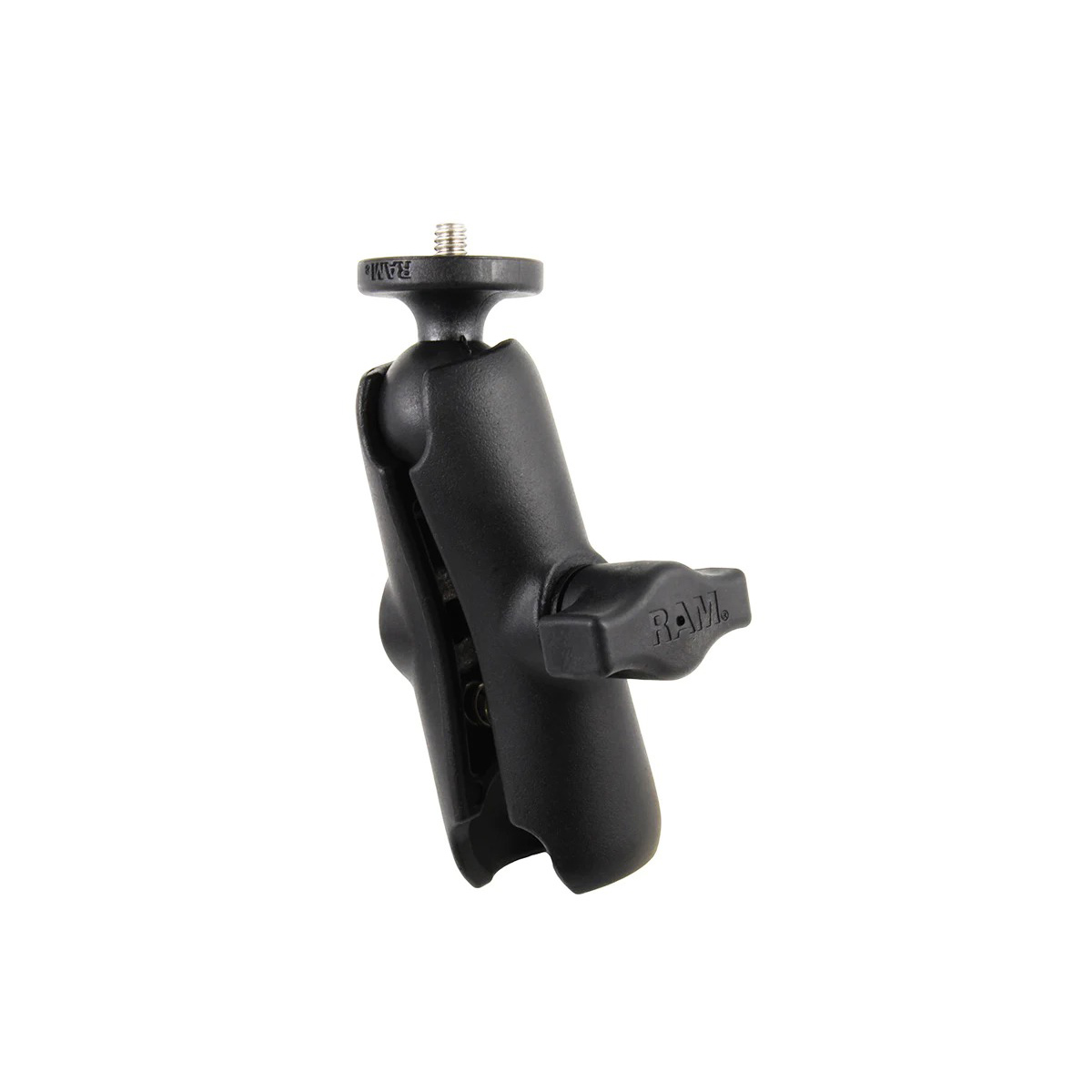

RAM-B-366-201: RAM Double Socket Arm with 1/4″-20 Action Camera Adapter

The RAM-B-366-201U consists of a 1″ diameter rubber ball, connected to a round plate with 1/4″-20 camera thread and standard length double socket arm. The round base contains pre-drilled holes, including the universal AMPS hole pattern. The round plate provides extra support and stability for cameras that rest on top of it. The male 1/4″-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras. Designed into the mount is a 1″ diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob allows for you to maneuver the mount to your optimum viewing position.

RAM-B-366-201U COMPONENTS:

RAP-B-366U + RAM-B-201U

SOCKET TO SOCKET LENGTH

• 3″

BALL SIZE

• B Size (1″)

WEIGHT CAPACITY

• Standard Use: 2 lbs
• Heavy-Duty Use: 1 lb

MATERIALS

• Marine-grade aluminum
• High strength composite
