RAM-B-166-347U

RAM Twist-Lock™ Suction Cup with AMPS Hole Pattern

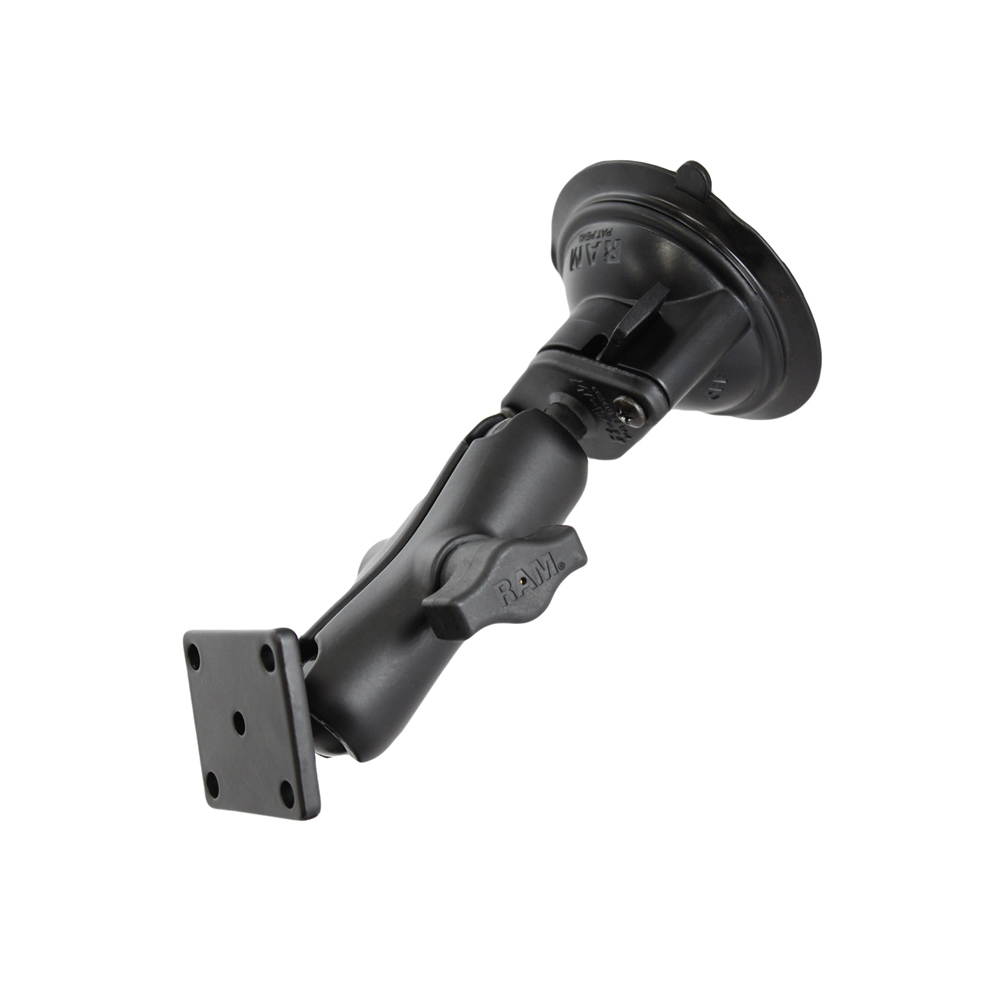

The RAM-B-166-347U, twist lock suction cup mount consists of a 3.3″ suction cup locking base and 2″ x 1.7″ square base end. The square base has four pre-drilled holes at each corner, making the universal AMPs hole pattern. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. Simply attach the suction cup base to the windshield of your vehicle for an easy and safe way to view your handheld device in your vehicle. High quality materials ensure your electronic device is safe, secure, and within easy reach. RAM’s patented design also dampens shock and vibration helping to extend the life of your mobile device.

Components

RAM-B-347U + RAM-B-201U + RAM-B-224-1U

Product Dimensions

Overall Height: 6.69″

Suction Size

3.3″ Diameter

Socket to Socket Length

3″

Hole Pattern

4-Hole AMPS: 1.181″ x 1.496″

Ball Size

B Size (1″)

Weight Capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials

Marine-grade aluminum
High strength composite

Weight

0.65 lb
