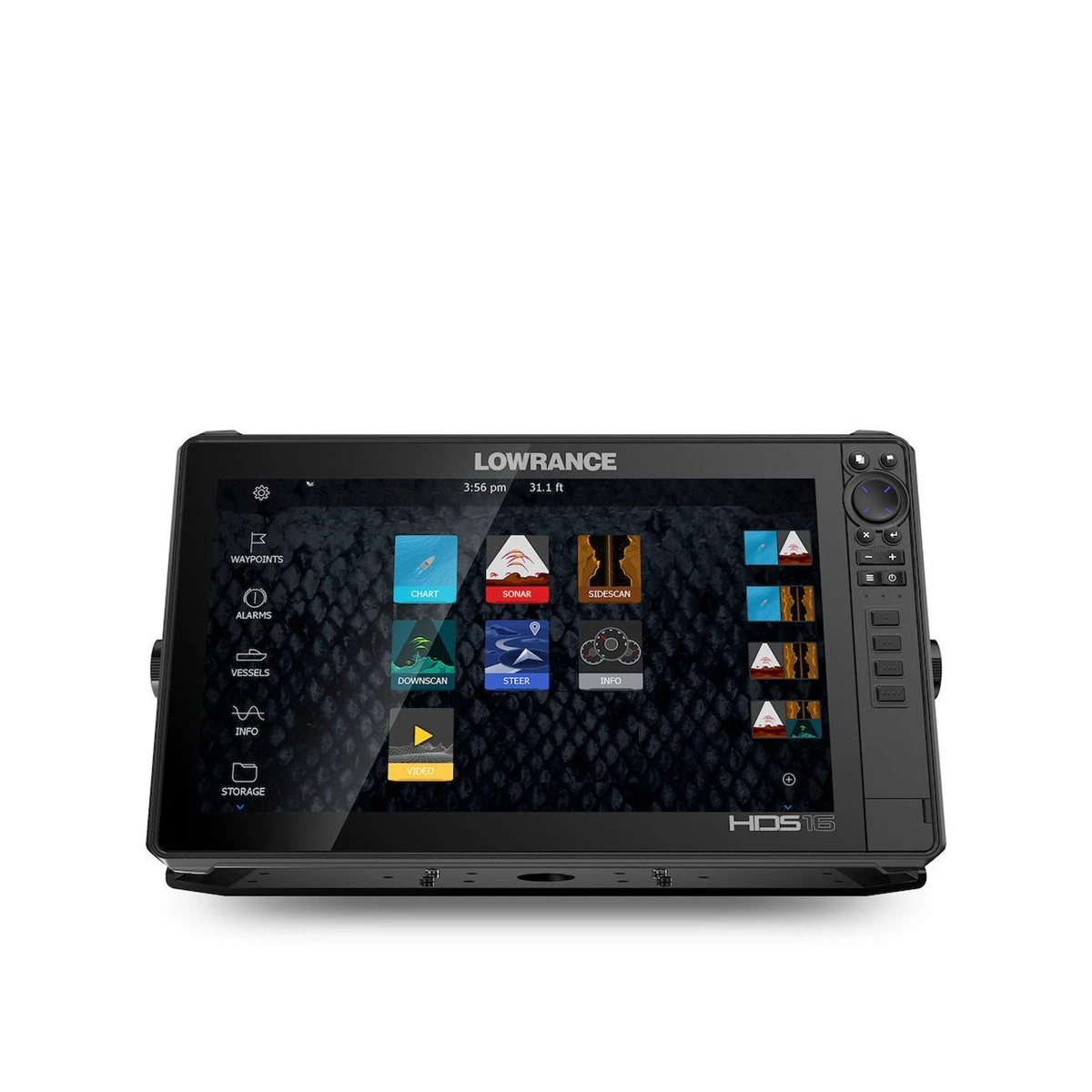

Lowrance HDS 16 Live ROW – no transducer
MPN: 000-14436-001
This item has been discontinued. No longer available.
HDS LIVE 16 delivers the best views with a full high-definition touchscreen and offers access to the best fishfinding technology with support for Active Imaging™, LiveSight™ real-time sonar, StructureScan® 3D with Active Imaging and new, Genesis Live onscreen mapping.
- Description
- Additional information
- Product Videos
- Product Specifications
- Package Includes
- Product Guides & Documentation
- Accessories
HDS LIVE 16 delivers the best views with a full high-definition touchscreen and offers access to the best fishfinding technology with support for Active Imaging™, LiveSight™ real-time sonar, StructureScan® 3D with Active Imaging and new, Genesis Live onscreen mapping.
Prepare yourself for a new level of fishfinding performance with HDS LIVE, which includes built-in Lowrance® CHIRP sonar, support for Active Imaging™, StructureScan® 3D with Active Imaging and the new ActiveTarget™ Live Sonar. Equipped with the best set of navigation tools ever built into a fishfinder/chartplotter display, HDS LIVE features preloaded worldwide basemap, automatic routing support and new Genesis Live onscreen mapping offering precision real-time mapping, down to ½-foot contours.
Key features of HDS 16 Live ROW
- Active Imaging™ 3-in-1 (CHIRP/Side/Down) sonar ready
- Active Imaging™ 2-in-1 (Side/Down) sonar ready
- StructureScan® 3D with Active Imaging enhancements
- LiveSight real-time sonar compatible
- Smartphone notifications
- Powerful quad-core processor
- High-performance dual-core processor
- Programmable keys
- C-MAP Genesis Live onscreen mapping
- FishReveal™ Smart Target View
- Six-panel, splitscreen capability
- Full high-definition SolarMAX HD screen
- High-resolution SolarMAX™ HD multi-touch screen
- Dual-Channel CHIRP – dual sonar-range coverage from the same transducer
- Preloaded worldwide basemap
- C-MAP Easy Routing, Navionics Autorouting capability
- Live Network Sonar
- SiriusXM® Marine Weather and Audio compatible
- Wireless and Bluetooth® connectivity
- Heat Map Chart Overlay
- Enhanced Surface Clarity
- Quick Access Control Bar
- Touchscreen control of MotorGuide® Xi5 Trolling Motor , Outboard Pilot and Power Pole® anchors
- Radar and SonicHub®2 audio server connectivity
- NMEA 2000® engine support
- Optional mapping upgrades include C-MAP, Navionics® and more
| Weight | 15.8 lbs |
|---|---|
| Dimensions | 21 × 13.5 × 9 in |
| Brand | Lowrance |
Product Videos
Product Specifications
|
Lowrance HDS 16Â Live Specifications
|
|
|
Screen Brightness
|
>1200 Nits
|
|
Update rate
|
10 Hz
|
|
Weather
|
SiriusXM via WM-3 (USA only)
|
|
GPS
|
10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
|
|
Shock Vibration
|
100,000 cycles of 20 G
|
|
Compass Safe
|
12″ (300mm)
|
|
Display Resolution
|
1920 x 1080 Full HD
|
|
Supply Voltage
|
12 v DC (10.8-17VDC)
|
|
GPS Receiver Channels
|
16
|
|
Ethernet Ports
|
2 x 100 Mbit, 6 max MFD’s on a network
|
|
NMEA 2000 Connectivity
|
1x Micro-C
|
|
SD Card Storage
|
2 micro SD cards up to 32GB
|
|
Warranty Period
|
2 Year + 3 additional years of upgrade options totaling 5 years
|
|
Power Consumption typical
|
3.00 @ 13VDC with Full Backlight, Sonar on
|
|
Power Consumption min
|
3.00 @ 13VDC with Full Backlight, Sonar on
|
|
Power Consumption max
|
4.9A @ 13VDC with Full Backlight, Sonar on
|
|
Position Accuracy
|
20m RMS
|
|
Weight
|
7.94lb (3.60kg)
|
|
Waypoints, Routes, Tracks
|
3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail
|
|
Time to First Fix
|
30s
|
|
Storage Temperature Range
|
4°F to 140°F (-20°C to 60°C )
|
|
Radar compatibility
|
4G (Broadband) 3G (Broadband) Halo24 (Pulse Compression Dome Radar) Halo 3’/4’/6′ (Open Array Pulse Compression Radar)
|
|
Dimensions W x H x D
|
16.95in (430.5mm) x 10.20in (259.2mm) x 3.46in (87.8mm)
|
|
Operating Temperature Range
|
|
|
Recommended Fuse Rating
|
6.5A
|
|
Humidity
|
60°C, 95% relative humidity (RH) for 18 hours
|
|
Internal Storage
|
8.0 GB Internal
|
|
Viewing Angles
|
80° top/bottom, 80° left/right
|
|
AIS
|
AIS Chart and Radar overlay. Target vessel details
|
|
Charts supported
|
C-MAP (MAX N, MAX N+), C-MAP Genesis, C-MAP Precision Contour HD (AMER ONLY), Navionics (Gold, NAV+ Platinum+) Insight (Pro and HD) Lowrance Regional Mapping Partners
|
|
Cartography included
|
C-MAP US Enhanced Basemap (AMER models), C-MAP World Background (ROW models), Navionics basemap (AMER and ROW models)
|
|
Steering Modes
|
Course, Heading, Waypoint, Power Steer
|
|
Maneuvers Turn Patterns
|
Course, Heading, Waypoint, Power Steer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S
|
|
Digital Switching
|
Czone, Naviop
|
|
Correction
|
DGPS, WAAS
|
|
Approvals Compliance
|
FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM
|
|
Mounting Type
|
Gimbal Bracket Front Dash Flush Mount Rear Dash Flush Mount
|
|
Bluetooth
|
Integrated Bluetooth 4.0 with support for Bluetooth Classic
|
|
Sonar Compatibility
|
Integrated: CHIRP Broadband Active Imaging DownScan Active Imaging SideScan Compatible with: SonarHub StructureScan StructureScan3D
|
|
Item Connectivity WiFi
|
Internal 802.11b/g/n and Compatible with WiFi-1 Module
|
|
Waterproof rating
|
IPX7 with card door closed
|
|
PC Connectivity
|
None
|
|
Autopilot
|
Outboard Pilot MotorGuide Xi5/Xi3 Trolling Motor * *requires Motorguide PinPoint Gateway
|
|
Video
|
Output: No Input: Composite video RCA – single channel via optional adaptor
|
|
Backlight Color
|
Pure White LED
|
|
Weather
|
SiriusXM via WM-3 (USA only)
|
|
Multimedia
|
SonicHub SonicHub2 FusionLink products any NMEA 2000 compliant Marine Audio products
|
|
Interface
|
Touchscreen: Full Multi-touch touchscreen Keypad: 8-way directional keypad Zoom +/- Exit Enter Menu Waypoint Power/Light
|
|
NMEA 0183 Sentences supported
|
TX / RX – GPSReceive GGA GLL GSA GSV VTG ZDATransmit GGA GLL GSA GSV VTG ZDA GLCTX / RX – NavigationReceive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX – SonarReceive DBT DPT MTW VLW VHMTransmit DBT DPT MTW VLW VHMTX / RX – CompassReceive HDG HDT HDMTransmit HDGTX / RX – WindReceive MWV MWDTransmit MWV MWDTX / RX – AIS / DSC*Receive DSC DSE VDM*AIS sentences are not bridged to or from NMEA 2000
|
Package Includes
In the Box:
- HDS Live 16
- Mounting Bracket
- Power Cable
- Sun Cover
