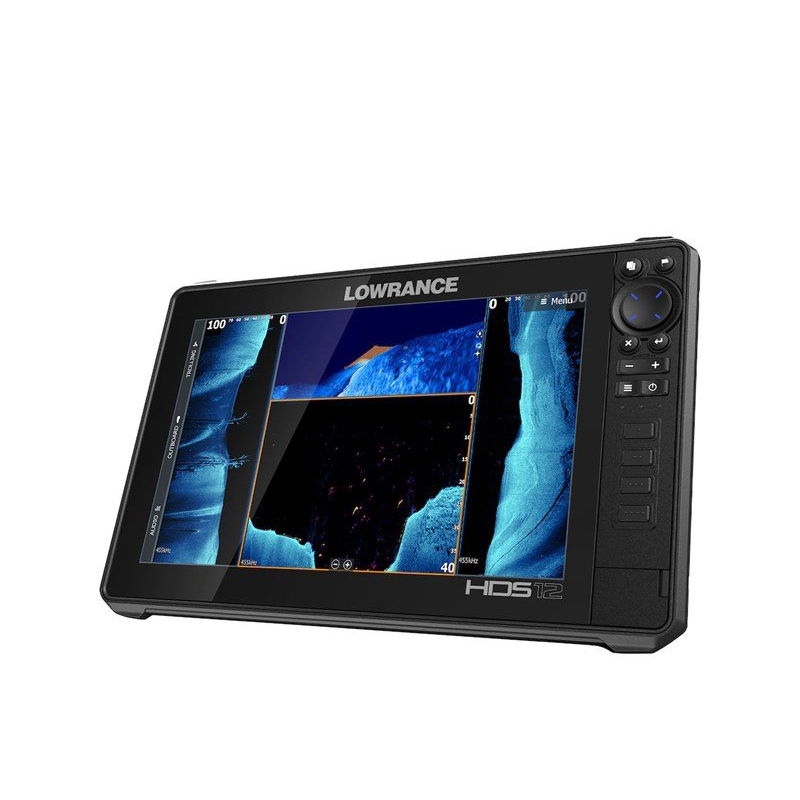

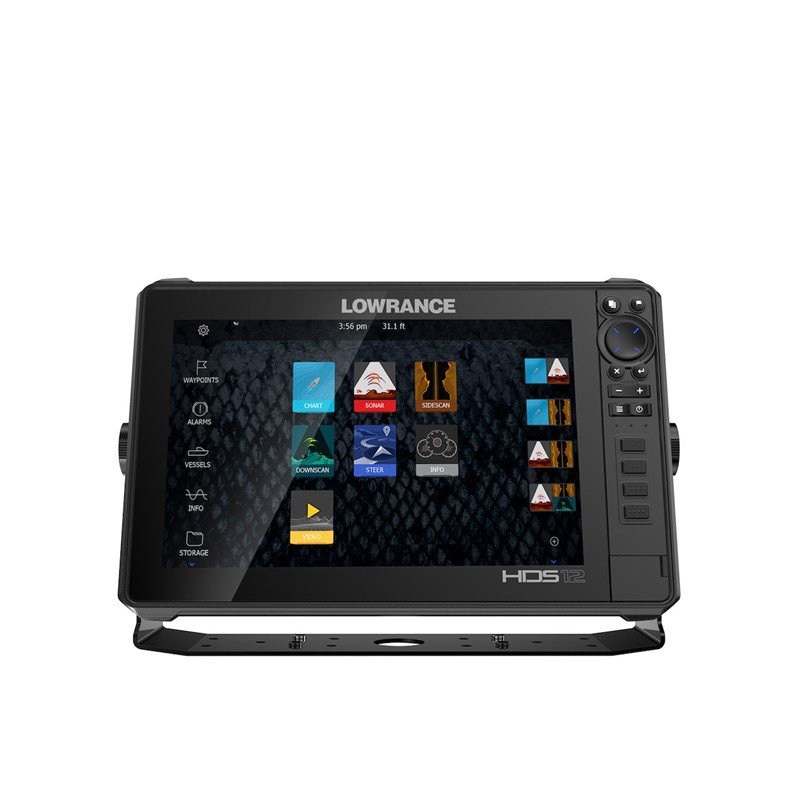

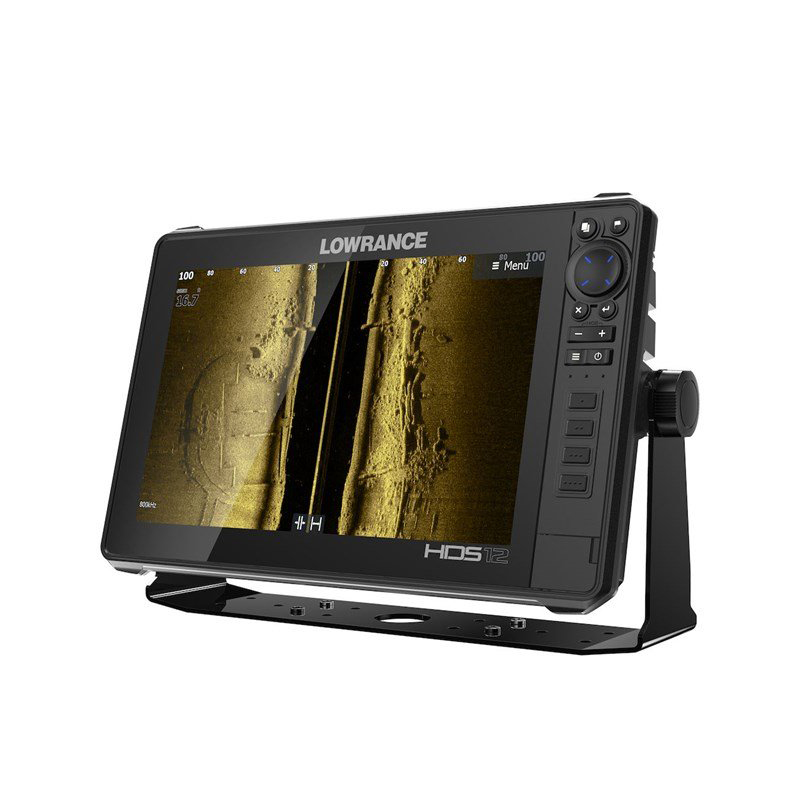

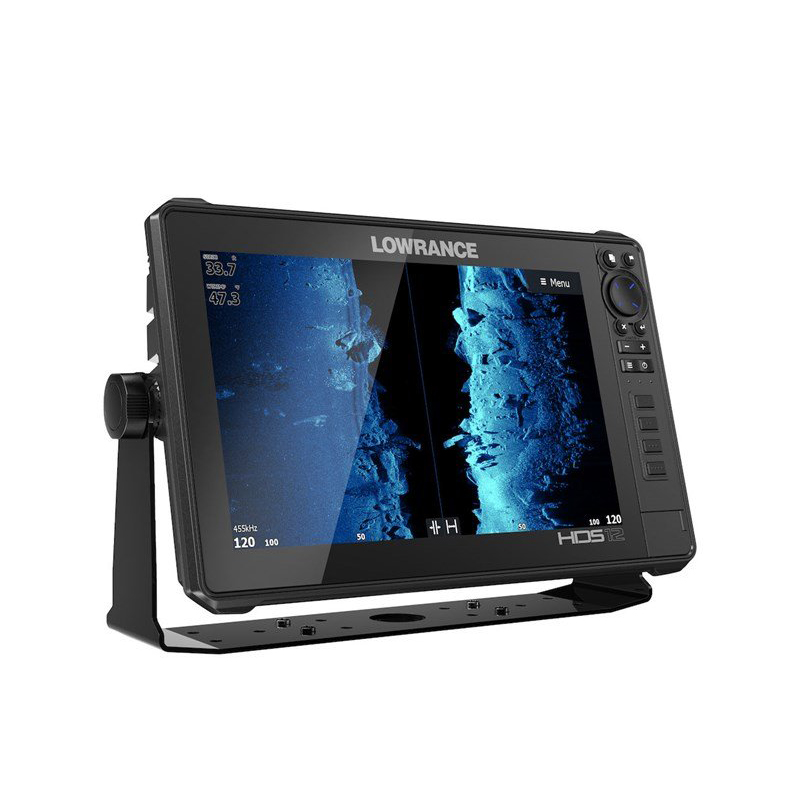

Lowrance HDS 12 Live 3-in-1
Original price was: $4,485.00.$2,599.99Current price is: $2,599.99.
On sale until July 31, 2024
In stock
- Description
- Additional information
- Product Videos
- Product Specification
- Package Includes
- Product Guides & Documentation
- Accessories
With Active Imaging 3-in-1
Rig your boat with an HDS LIVE 12 and get access to the top fishfinding innovations with support for Active Imaging™, LiveSight™ real-time sonar, StructureScan® 3D with Active Imaging and Genesis Live onscreen mapping, plus the capability to view data in a six-panel splitscreen.
With HDS LIVE, we took the most popular fishfinder series on the professional fishing circuit and made it even better for all anglers with a sleek, new design, faster processor, best-ever built-in suite of HDS navigation tools and support for a wide array of new fishfinding technology, unmatched by any other fishfinder.
Prepare yourself for a new level of fishfinding performance with HDS LIVE, which includes built-in Lowrance® CHIRP sonar, support for Active Imaging™, StructureScan® 3D with Active Imaging and revolutionary LiveSight™ Real-Time Sonar. Equipped with the best set of navigation tools ever built into a fishfinder/chartplotter display, HDS LIVE features preloaded C-MAP® US Enhanced Inland and Coastal mapping, automatic routing support and new Genesis Live onscreen mapping offering precision real-time mapping, down to ½-foot contours.
Lowrance HDS Live 3-in-1 Key Features
- Active Imaging™ 3-in-1 (CHIRP/Side/Down) sonar ready
- Active Imaging™ 2-in-1 (Side/Down) sonar ready
- StructureScan® 3D with Active Imaging enhancements
- LiveSight real-time sonar compatible – Coming Spring 2019
- Smartphone notifications
- Powerful quad-core processor
- High-performance dual-core processor
- Programmable keys
- C-MAP Genesis Live onscreen mapping
- FishReveal™ Smart Target View
- Six-panel, splitscreen capability
- High-resolution SolarMAX™ HD multi-touch screen
- Preloaded high-detail C-MAP® US Enhanced charts with 1-foot contours on 4,000 lakes
- C-MAP Easy Routing, Navionics Autorouting capability
- Dual-Channel CHIRP – dual sonar-range coverage from the same transducer
- Live Network Sonar
- SiriusXM® Marine Weather and Audio compatible
- Wireless and Bluetooth® connectivity
- Heat Map Chart Overlay
- Enhanced Surface Clarity
- Quick Access Control Bar
- Touchscreen control of MotorGuide® Xi5 Trolling Motor , Outboard Pilot and Power Pole® anchors
- Radar and SonicHub®2 audio server connectivity
- NMEA 2000® engine support
- Optional mapping upgrades include C-MAP, Navionics® and more
| Weight | 14.4 lbs |
|---|---|
| Dimensions | 17.25 × 15.5 × 7 in |
Product Videos
Product Specification
Lowrance HDS 12 Live 3-in-1 Specifications | |
Screen Brightness | >1200 Nits |
Update rate | 10 Hz |
Weather | SiriusXM via WM-3 (USA only) |
GPS | 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS |
Shock Vibration | 100,000 cycles of 20 G |
Compass Safe | 12″ (300mm) |
Display Resolution | 1280 x 800 |
Supply Voltage | 12 v DC (10.8-17VDC) |
GPS Receiver Channels | 16 |
Ethernet Ports | 1x 100 Mbit, 6 max MFD’s on a network |
NMEA 2000 Connectivity | 1x Micro-C |
SD Card Storage | 2 micro SD cards up to 32GB |
Warranty Period | 2 Year + 3 additional years of upgrade options totaling 5 years |
Power Consumption typical |
|
Power Consumption min | 2.3A @ 13VDC with Full Backlight, Sonar on |
Power Consumption max | 3.6A @ 13VDC with Full Backlight, Sonar on |
Position Accuracy | 20m RMS |
Weight | 4.14lb (2.00kg) |
Waypoints, Routes, Tracks | 3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail |
Time to First Fix | 30s |
Storage Temperature Range | 4°F to 140°F (-20°C to 60°C ) |
Radar compatibility | 4G (Broadband) 3G (Broadband) Halo24 (Pulse Compression Dome Radar) Halo 3’/4’/6′ (Open Array Pulse Compression Radar) |
Dimensions W x H x D | 9.00in (228.5mm) x 13.682in (347.5mm) x 3.26in (82.9mm) |
Operating Temperature Range |
|
Recommended Fuse Rating | 5A |
Humidity | 60°C, 95% relative humidity (RH) for 18 hours |
Internal Storage | 8.0 GB Internal |
Viewing Angles | 80° top/bottom, 80° left/right |
AIS | AIS Chart and Radar overlay. Target vessel details |
Charts supported | C-MAP (MAX N, MAX N+), C-MAP Genesis, C-MAP Precision Contour HD (AMER ONLY), Navionics (Gold, NAV+ Platinum+) Insight (Pro and HD) Lowrance Regional Mapping Partners |
Catography included | C-MAP US Enhanced Basemap (AMER models), C-MAP World Background (ROW models), Navionics basemap (AMER and ROW models) |
Steering Modes | Course, Heading, Waypoint, Power Steer |
Manouevres Turn Patterns | Course, Heading, Waypoint, Power Steer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S |
Digital Switching | Czone, Naviop |
Correction | DGPS, WAAS |
Approvals Compliance |
|
Mounting Type | Gimbal Bracket Front Dash Flush Mount Rear Dash Flush Mount |
Bluetooth | Integrated Bluetooth 4.0 with support for Bluetooth Classic |
Sonar Compatibility | Integrated: CHIRP Broadband Active Imaging DownScan Active Imaging SideScan Compatible with: SonarHub StructureScan StructureScan3D |
Item Connectivity WiFi | Internal 802.11b/g/n and Compatible with WiFi-1 Module |
Waterproofrating | IPX7 with card door closed |
PC Connectivity | None |
Autopilot | Outboard Pilot MotorGuide Xi5/Xi3 Trolling Motor * *requires Motorguide PinPoint Gateway |
Video | Output: No Input: Composite video RCA – single channel via optional adaptor |
Backlight Color | Pure White LED |
Weather | SiriusXM via WM-3 (USA only) |
Multimedia | SonicHub SonicHub2 FusionLink products any NMEA 2000 compliant Marine Audio products |
Interface | Touchscreen: Full Multi-touch touchscreen Keypad: 8-way directional keypad Zoom +/- Exit Enter Menu Waypoint Power/Light |
NMEA 0183 Sentences supported | TX / RX – GPSReceive GGA GLL GSA GSV VTG ZDATransmit GGA GLL GSA GSV VTG ZDA GLCTX / RX – NavigationReceive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX – SonarReceive DBT DPT MTW VLW VHMTransmit DBT DPT MTW VLW VHMTX / RX – CompassReceive HDG HDT HDMTransmit HDGTX / RX – WindReceive MWV MWDTransmit MWV MWDTX / RX – AIS / DSC*Receive DSC DSE VDM*AIS sentences are not bridged to or from NMEA 2000 |
Package Includes
HDS 12 Live 3-in1 Packages include:
- HDS Live 12
- Active Imaging 3-in-1 Transducer
- Gimbal Bracket and Knobs
- Power Cable
- Sun Cover
