Icom IC-M400BB Marine VHF Transceiver
$609.99
Icom’s M400BB is perfect for boats that need a radio but don’t have room on the helm
Out of Stock (On Order)
- Description
- Additional information
- Product Specification
- Package Includes
- Product Guides & Documentation
- Accessories

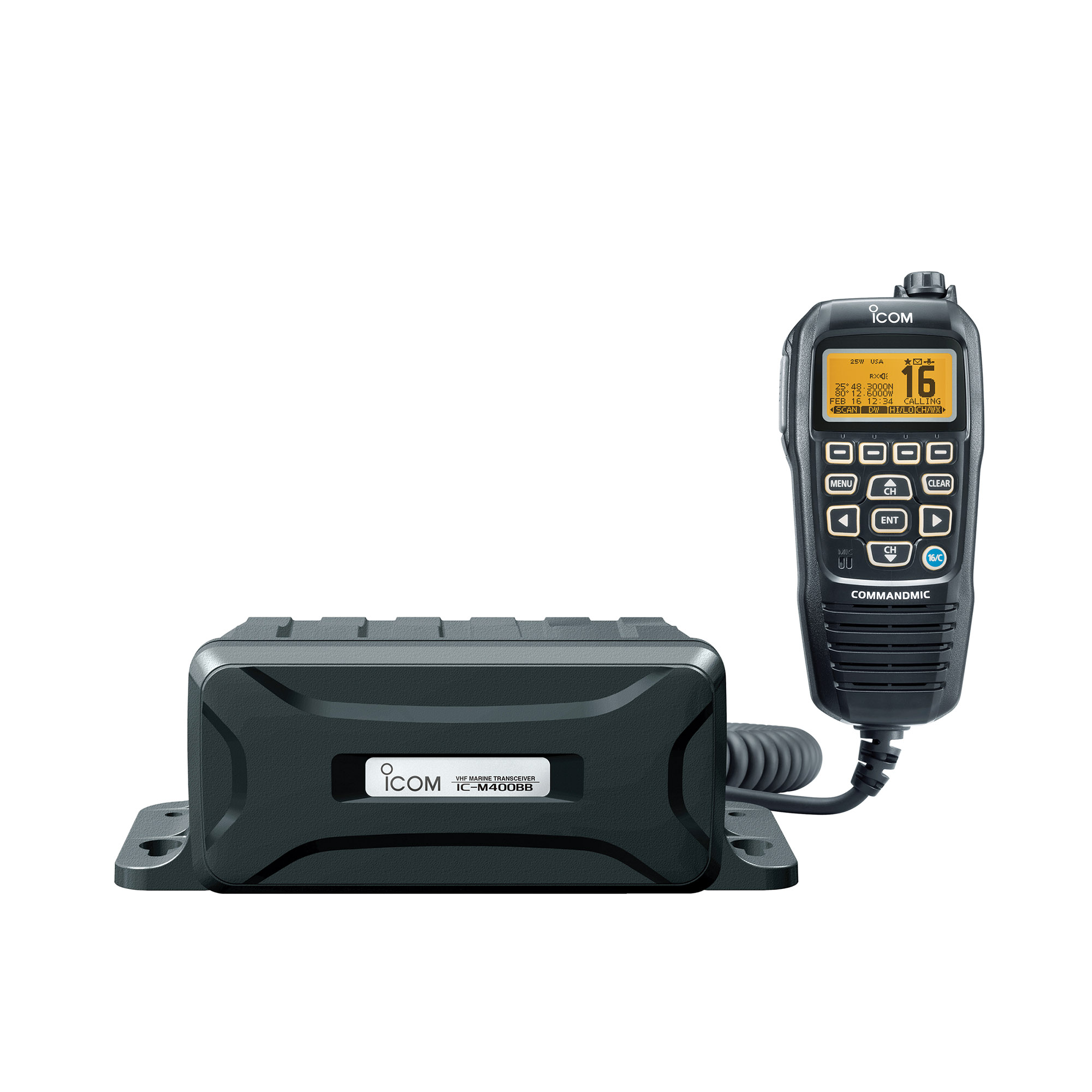

Icom’s M400BB is perfect for boats that need a radio but don’t have room on the helm. The M400BB consist of a two-piece, black box configuration. Install the full RF black box unit in an out-of-sight place and connect the COMMANDMICIV™, HM-195 to the cockpit or fly bridge. The HM-195 allows operation of all radio functions including DSC, radio, foghorn and hailer horn. The HM-195 also utilizes the same user soft key interface used on Icom’s latest range of marine radios for easy operation.
| Output power: | 25W |
| Hailer/PA: | 10W PA |
| Horn/Foghorn: | Built-in |
| Waterproof rating: | IPX7 (Radio and microphone) |
| Versions: | Radio with HM195B Radio with HM195SW |
Active noise cancelling
The built-in bidirectional active noise cancelling reduces background noise to up to 90% and improves both your transmitted voice and incoming call. Hear and be heard more clearly.
10W Amplifier
The M400BB has a built-in 10W amplifier that increases the audio output from an additional external speaker. The public address function allows you to make an announcement from the microphone like a loud speaker, and the foghorn can also be emitted from the external speaker.
NMEA Interface
When connected to an external GPS receiver, current position and time are shown on the COMMANDMIC™ display. When receiving DSC information from another vessel, the radio can transfer it to a navigational device via NMEA 0183 connectivity.
Additional features
- AquaQuake™ water draining function
- Dual/tri-watch function for monitoring Ch.16 and/or call channel
- Priority and normal scan
- Class D DSC
- Connect to the optional MA-500TR and the AIS target call function allows you to set up an individual DSC all from the MA-500TR.
| Weight | 4.85 lbs |
|---|---|
| Dimensions | 9.75 × 7.25 × 7.75 in |
| Brand | ICOM |
Product Specification
Icom IC-M400BB Specifications: |
|
|
General
|
|
|
Frequency range
|
Tx: 156.025–157.425MHz
Rx: 156.050–163.275MHz C. 70: 156.525MHz |
|
Usable channel groups
|
INT, USA, CAN and WX channels
|
|
Type of emission
|
16K0G3E (FM), 16K0G2B (DSC)
|
|
Operating temperature range (except BP-227)
|
–20°C to +60°C ( –4°F to +140°F)
|
|
Antenna impedance
|
50Ω (SO-239)
|
|
Current drain (at 7.4V DC)
|
Tx (at 25W output): 5.5A Max.
Rx (Max audio.): 3.5A Max. |
|
Dimensions
|
IC-M400BB: 216Ă—79Ă—125mm; 8.5Ă—3.11Ă—4.92 in HM-195B/SW: 67.5Ă—144.5Ă—37mm; 2.66Ă—5.69Ă—1.46 in |
|
Weight
|
IC-M400BB: 830g; 1.83 lb
HM-195B/SW: 400g; 14.1 oz |
|
NMEA in/out formats
|
RMC, GGA, GNS, GLL, DSC, DSE
|
|
Transmitter
|
|
|
Output power (Hi/Low)
|
25W, 1W (High, low)
|
|
Max. frequency deviation
|
± 5.0 kHz
|
|
Spurious emissions
|
Less than –70dBc (at 25W)
|
|
Frequency tolerance
|
±10ppm
|
|
Receiver
|
|
|
Sensitivity (at 12dB SINAD)
|
Main: 0.22ÎĽV typical (at 12dB SINAD)
Ch. 70: –5dBμ emf typ. (1% BER) |
|
Squelch sensitivity
|
Less than 0.32ÎĽV
|
|
Adjacent channel selectivity
|
Main: More than 70dB
Ch. 70: More than 73dBÎĽ emf (1% BER) |
|
Spurious response
|
Main: More than 70dB
Ch. 70: More than 73dBÎĽ emf (1% BER) |
|
Intermodulation rejection
|
Main: More than 70dB
Ch. 70: More than 68dBÎĽ emf (1% BER) |
|
Hum and noise ratio
|
More than 40dB
|
|
Audio output power
|
Internal speaker: More than 2W (HM-195B/SW)
External speaker: More than 10W (RX Speaker) |
Measurements made in accordance with TIA/EIA 603 and IEC 62238 (Ch. 70 receiver specifications).
Package Includes
Package Includes:
- IC-M400BB
- COMMANDMIC, either HM-195B or HM-195SW
- DC power cable
