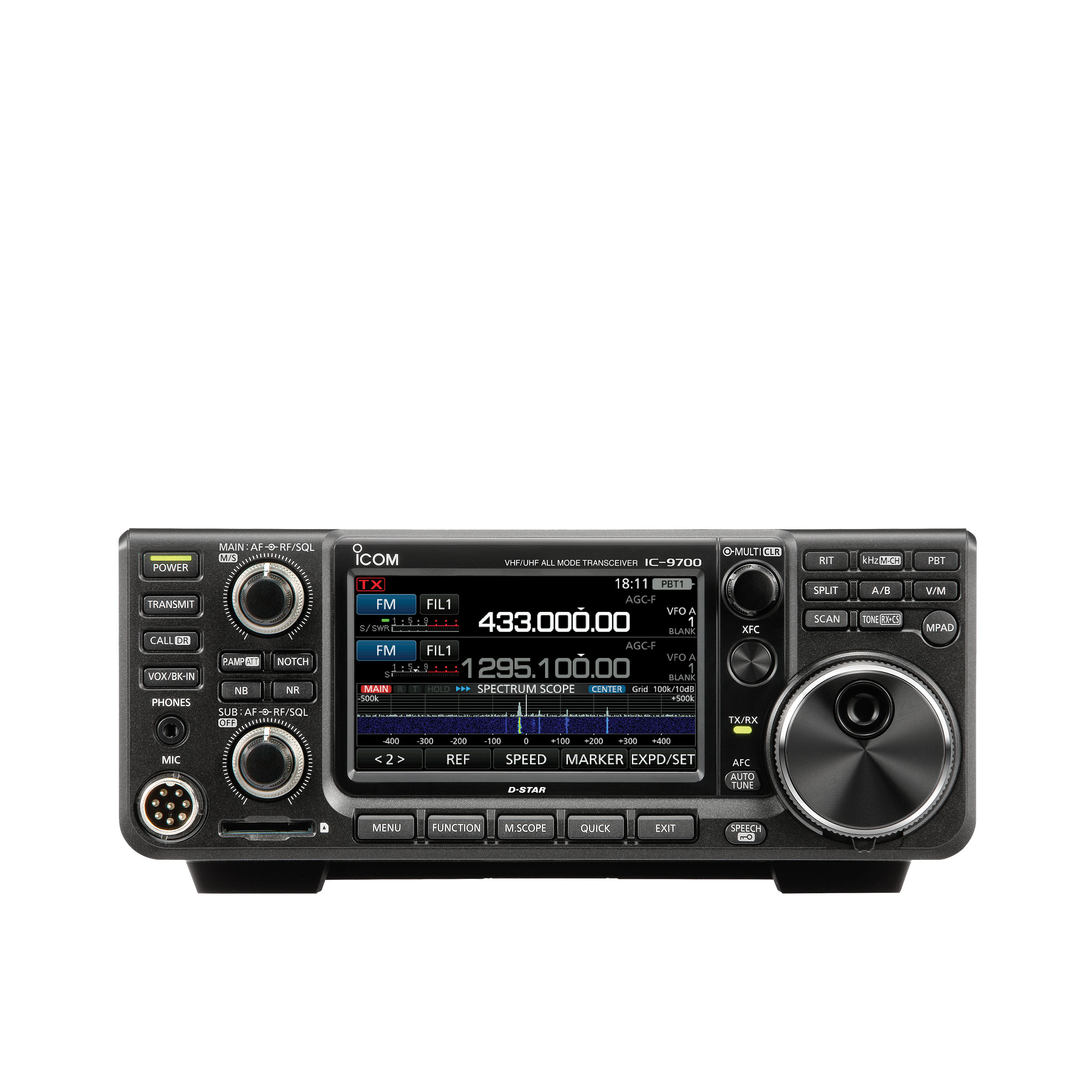

IC-9700 VHF/UHF Transceiver

Name: Amateur Radios | Icom IC-9700 HF/VHF/UHF Transceiver - GPSCentral.ca
Brand: ICOM
SKU: 13397
Availability: InStock

MPN: IC-9700

$2,699.99

Built with the VHF/UHF weak signal operator in mind, the IC-9700 is an RF direct sampling receiver for 2m and 70cm.

In stock

SKU: 13397 Categories: Amateur Radios, VHF/ UHF Radios Tag: Extended Warranty

Direct Sampling Brought to the VHF/UHF World

Built with the VHF/UHF weak signal operator in mind, the IC-9700 is an RF direct sampling receiver for 2m and 70cm. The IF receiver consists of a single, down conversion for 23cm that is between 311 – 371MHz. This design provides a quiet receiver due to Icom’s DSP technology. The robust PA provides 100W on 2m, 75W on 70cm, and 10W on 23cm.

Band Management

In addition to band specific memory channels, the IC-9700 allows band specific receiver and transmitter settings. For transmit, users can make adjustments to RF power, TX power Limit, Limit Power, and TX Delay by band. Basic receiver settings, like the Noise Blanker, Noise Reduction, and others can be tweaked by band with a dynamic Notch and Filter setup by band/mode.

Other Planned Features Include:

All mode, tri-band transceiver covering 144, 430/440 as well as 1200MHz
Supports CW/AM/SSB/SM/RTTY and D-STAR DV and DD modes
Digital Data (DD) mode provides 128 kbps data communication
PA provides a powerful 100W (144 MHz), 75W (430/440 MHz) and 10W (1200 MHz) output
4.3″ touch screen color TFT LCD
Smooth satellite operation with normal/reverse tracking and 99 satellite channels
Real-time, high-speed spectrum scope & waterfall display
Dualwatch operation and full-duplex operation in the satellite mode
Supports 2 wave simultaneous reception (different band / different mode), full duplex operation.
D-STAR Terminal and Access Point mode (RS-MS3A/W)
Dual D-STAR receive (decodes two voice streams simultaneously)
Full duplex operation/Dual Watch (no V/V or U/U Capability)
Main or Sub-Band Scope (Center/Fix mode +/-500kHz Center Mode)
Audio Scope
CW full break-n
0.5ppm frequency stability with 10MHz external reference input
Voice Recording/playback function (SD Memory Card)
Ethernet Port (Internal RS-BA1 Server)
USB audio and control connection
DR Memories: 2,500

Weight	16 lbs
Dimensions	14.25 × 12.25 × 10.25 in
Manufacturer Part Number	IC-9700

Specifications

Icom IC-9700 Specifications
General
Frequency Coverage	144.000–148.000, 430.000–450.000, 1240.000–1300.000 MHz
Mode	SSB, CW, RTTY, AM, FM, DV, DD
Number of channels	107 (99 Simplex + 6 Program scan edges + 2 CALL) × 3 bands, 99 (Satellite) , 2000 (DR function)
Antenna connectors	144 MHz SO-239 (50 Ω), 430/440, 1200 MHz Type-N (50 Ω)
Frequency stability	Less than ± 0.5 ppm (–10°C to + 60°C; 14°F to 140°F)
Power supply requirement	13.8 V DC ±15% (Negative ground)
Frequency resolution	1 Hz
Power consumption	TX: Less than 18 A (High power) RX: 1.2 A typical (Standby), Less than 1.8 A (Maximum audio)
Dimensions (W×H×D; Projections not included)	240 × 94 × 238 mm, 9.4 × 3.7 × 9.4 in
Weight (approx.)	4.7 kg, 10.4 lb (approximate)
Transmitter
Output power (HF/50 MHz) 144 MHz 430/440 MHz 1200 MHz	SSB/CW/FM/RTTY/DV/DD 0.5–100 W 0.5–75 W 0.1–10 W	AM 0.125–25 W 0.125–18.75 W 0.025–2.5 W
Modulation system	SSB: Digital PSN modulation AM: Digital Reactance modulation FM: Digital Low Power modulation DV: Digital GMSK Reactance modulation DD: Digital Quadrature modulation
Spurious emissions 144 MHz 430/440 MHz 1200 MHz	Harmonics Less than –63 dB Less than –61.8 dB Less than −53 dB	Out-of-band emission Less than −60 dB Less than −60 dB Less than −50 dB
Unwanted sideband	More than 50 dB
Carrier suppression	More than 50 dB
Microphone impedance	600 Ω
Receiver
Intermediate frequencies	311–371 MHz (1200 MHz)
Receiver system	144, 430/440 MHz RF Direct Sampling 1200 MHz Down Conversion IF Sampling
Sensitivity (Preamp: ON, Filter: SOFT): SSB/CW (10 dB S/N) AM (10 dB S/N) FM (12 dB SINAD) DV (1% BER) (PN9) DD (1% BER) (PN9)	Less than 0.11 μV Less than 1.0 μV Less than 0.18 μV Less than 0.35 μV Less than 1.59 μV
Selectivity (Filter shape: Sharp) SSB (BW: 2.4 kHz) CW (BW: 500 Hz) RTTY (BW: 500 Hz) AM (BW: 6 kHz) FM (BW: 15 kHz) DV (12.5 kHz spacing) DD (300 kHz spacing)	More than 2.4 kHz/−3 dB 500 Hz/−3 dB 500 Hz/−3 dB 6 kHz/−3 dB 12 kHz/−6 dB −50 dB −40 dB	Less than 3.6 kHz/–60 dB 700 Hz/–60 dB 700 Hz/–60 dB 15 kHz/–60 dB 20 kHz/–60 dB
Spurious and image rejection ratio SSB/CW AM/FM/DV DD	144, 430/440 MHz More than 70 dB, 1200 MHz More than 50 dB 144, 430/440 MHz More than 60 dB, 1200 MHz More than 50 dB 1200 MHz More than 50 dB
Audio output power	More than 2.0 W (1 kHz, 10% distortion) into an 8 Ω load
All stated specifications are subject to change without notice or obligation.
