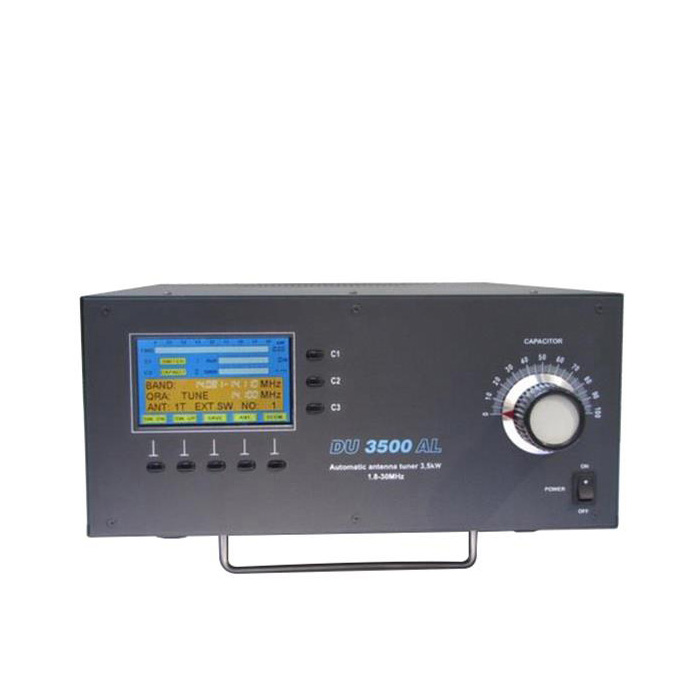

HA8DU Antenna Tuners DU3500AL

MPN: DXE-DU3500AL

$4,444.00

HA8DU Antenna Tuners are well known in Europe for their quality parts and perfect performance. World-class construction and high power handling, these are the tuners everyone will be talking about for years to come!

Special Order

Out of Stock (On Order)

SKU: 13367 Categories: ,

HA8DU Antenna Tuners are well known in Europe for their quality parts and perfect performance. World-class construction and high power handling, these are the tuners everyone will be talking about for years to come!

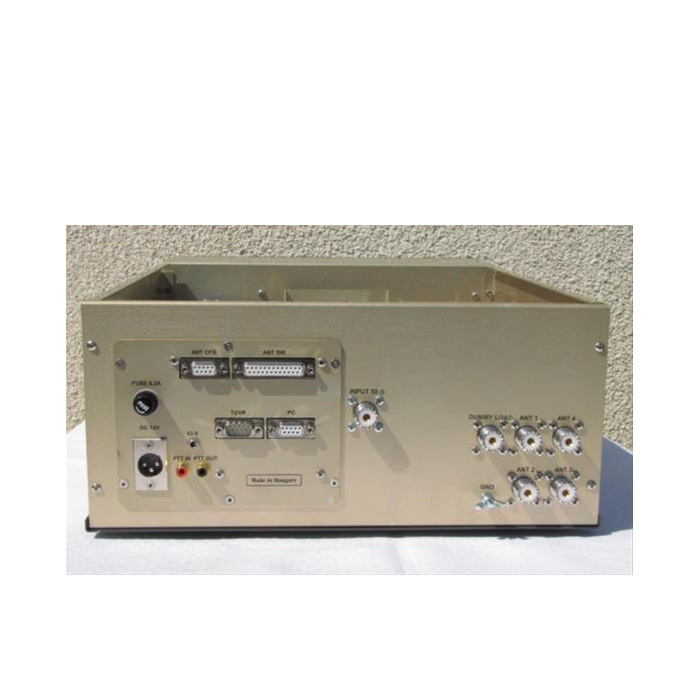

HA8DU Tuners include switching for tuned or direct connection to multiple antenna ports, a bypass connector for an external dummy load, cross-needle power and SWR meters, a top-grade turns counter on roller tuners and heavy gauge coated steel enclosures for an extra sturdy chassis.

Weight 17.64 lbs
Dimensions 13.39 × 18.5 × 6.5 in
Manufacturer Part Number DXE-DU3500AL

Product Specifications

Specifications:

  • Antenna Tuner Type: Automatic
  • Antenna Tuner Location: Desktop
  • Weather-Resistant: No
  • Mobile Whip Tuner: No
  • Tuner Maximum Power Rating: 3,500 watts
  • Frequency Range: 1.8-30 MHz
  • Tuner Inductor Type: Automatic
  • Tuner Capacitors: Automatic
  • Tuner Bypass Switch: Yes
  • Tuner Control Type: Internal
  • Internal Dummy Load: No
  • Internal Balun Type: None
  • DC Power Required: Yes
  • Tuner Width: 13.386 in. (340 mm)
  • Tuner Height: 6.496 in. (165 mm)
  • Tuner Depth: 18.504 in. (470 mm)
  • Tuner Weight: 17.64 lbs. (8.0 kg)
  • Quantity: Sold individually.
  • Notes: Impedance Range : Coax 22.5 – 450 ohm
  • Lowest Band of Operation: 160 meters
  • Highest Band of Operation: 10 meters
