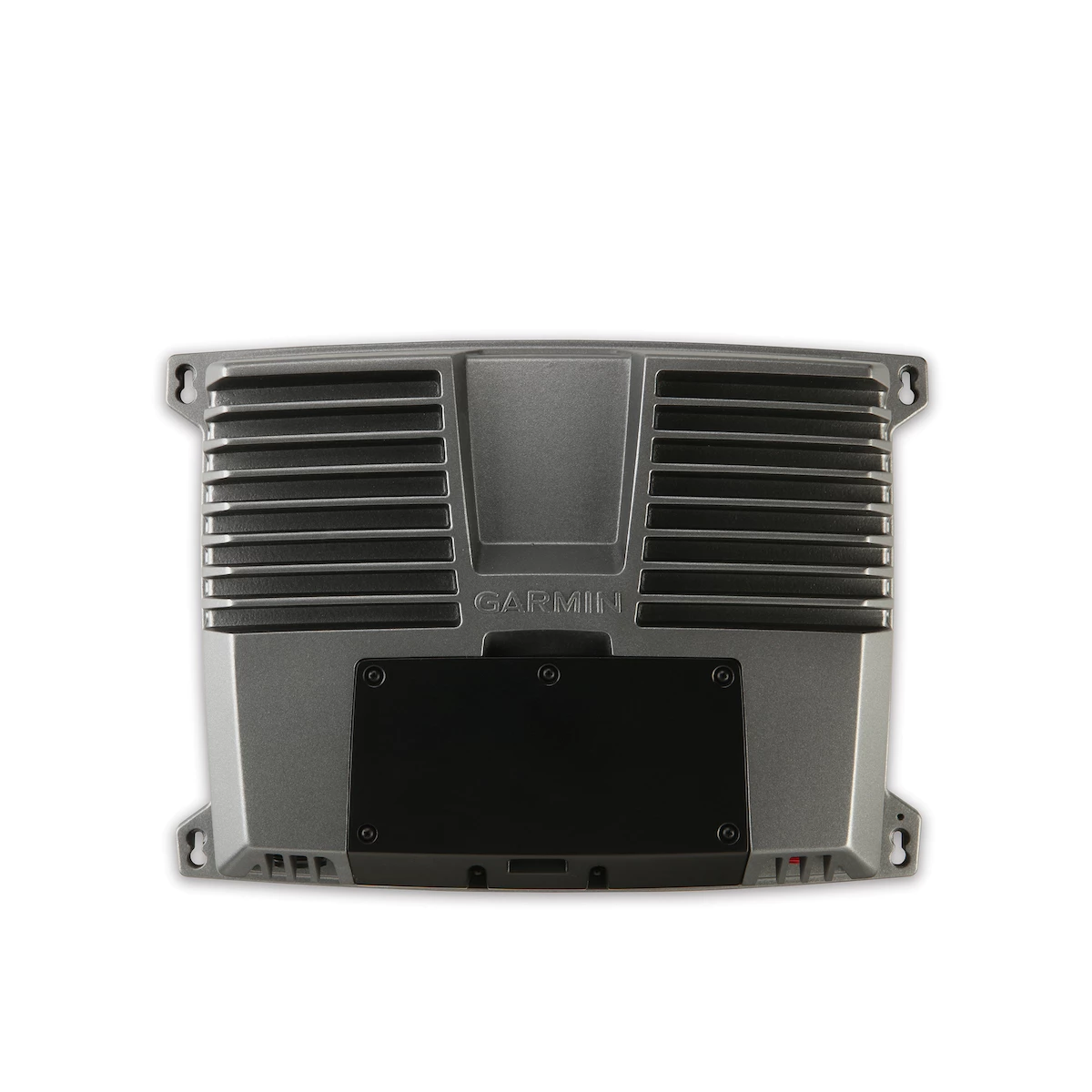

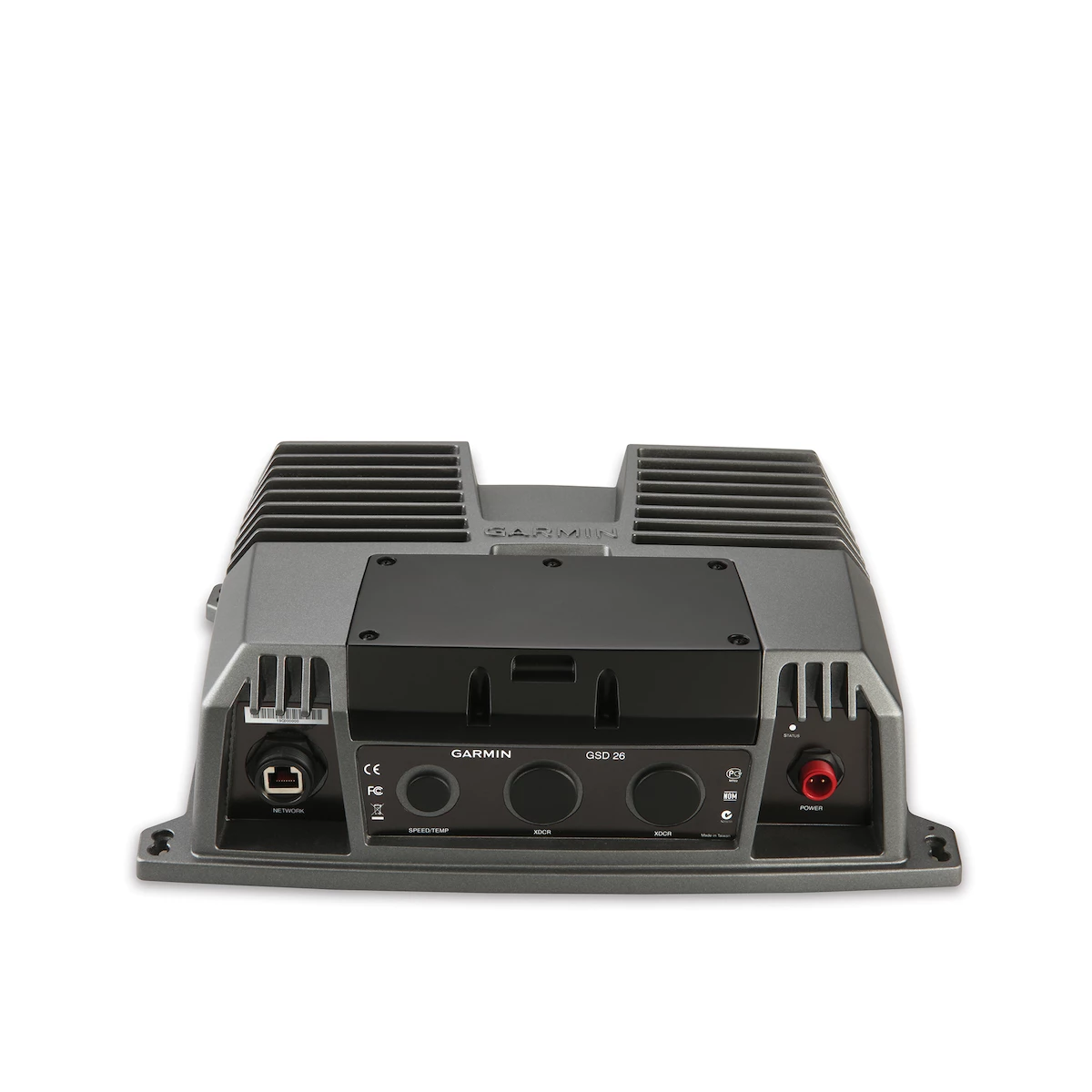

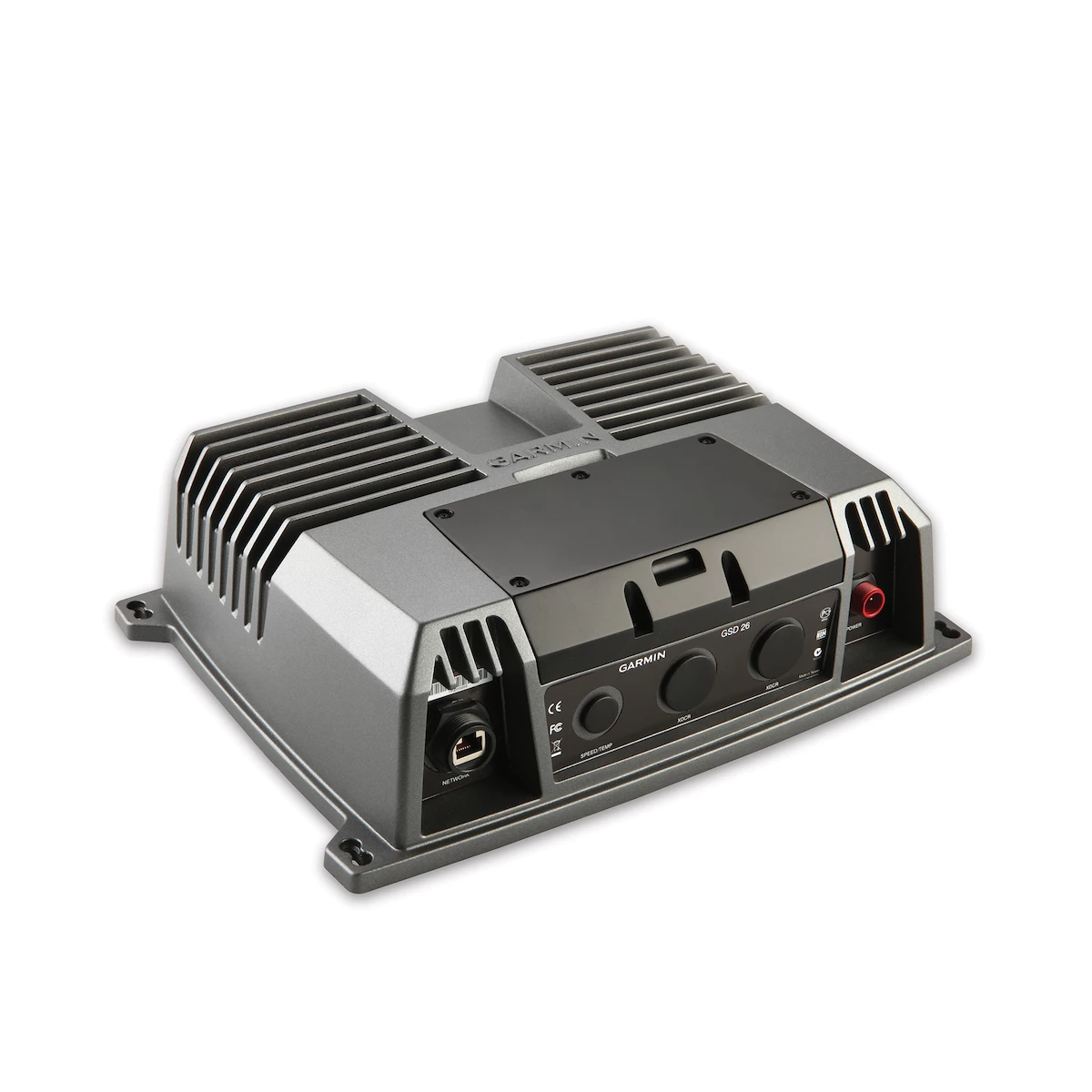

GSD 26 CHIRP Professional Sonar Module

Digital Black Box Network Sounder with Spread Spectrum Sonar Technology

The GSD 26 digital sonar ushers in the next evolution of sportfishing technology, providing unrivaled target separation at far greater depths than traditional sonar.

Discover Spread Spectrum Clarity

For serious deep-sea sportfishing, the GSD 26 takes high-definition targeting to a whole new level. With a compatible transducer, the GSD 26’s Spread Spectrum technology scans on multiple frequencies at one time, returning vast amounts of data to the receiver. As a result, you can expect precise, shallow-water-like target separation at much greater depths – up to 10,000 ft (3,000 m).

A traditional fixed frequency mode allows you to manually adjust frequencies from 25 kHz to 210 kHz for enhanced targeting of specific fish species. You can also adjust transmit power from 300 W to 3 kW (depending on transducer) for even more control over your sonar returns.

Get Two Sonars in One

The GSD 26’s dual-transceiver design allows for simultaneous and independent transducer operation. You have complete control over the data you see on your compatible Garmin chartplotter, which easily connects to the GSD 26 over the Garmin Marine Network.

GSD 26: Serious sonar. For serious sportfishing.

Please Note: This product does not include a transducer. Garmin offers a complete selection of transducers to be purchased separately as accessories.

Compatibility: The GSD 26 is compatible with 4000, 5000, 6000 and 7000 series chartplotters. Click here for a complete list of compatible marine units.
