Diamond Antenna HV7A
MPN: HV-7A
$185.00
Please note: Due to the size of this antenna, additional shipping charges will apply.
In stock
Please note: Due to the size of this antenna, additional shipping charges will apply.

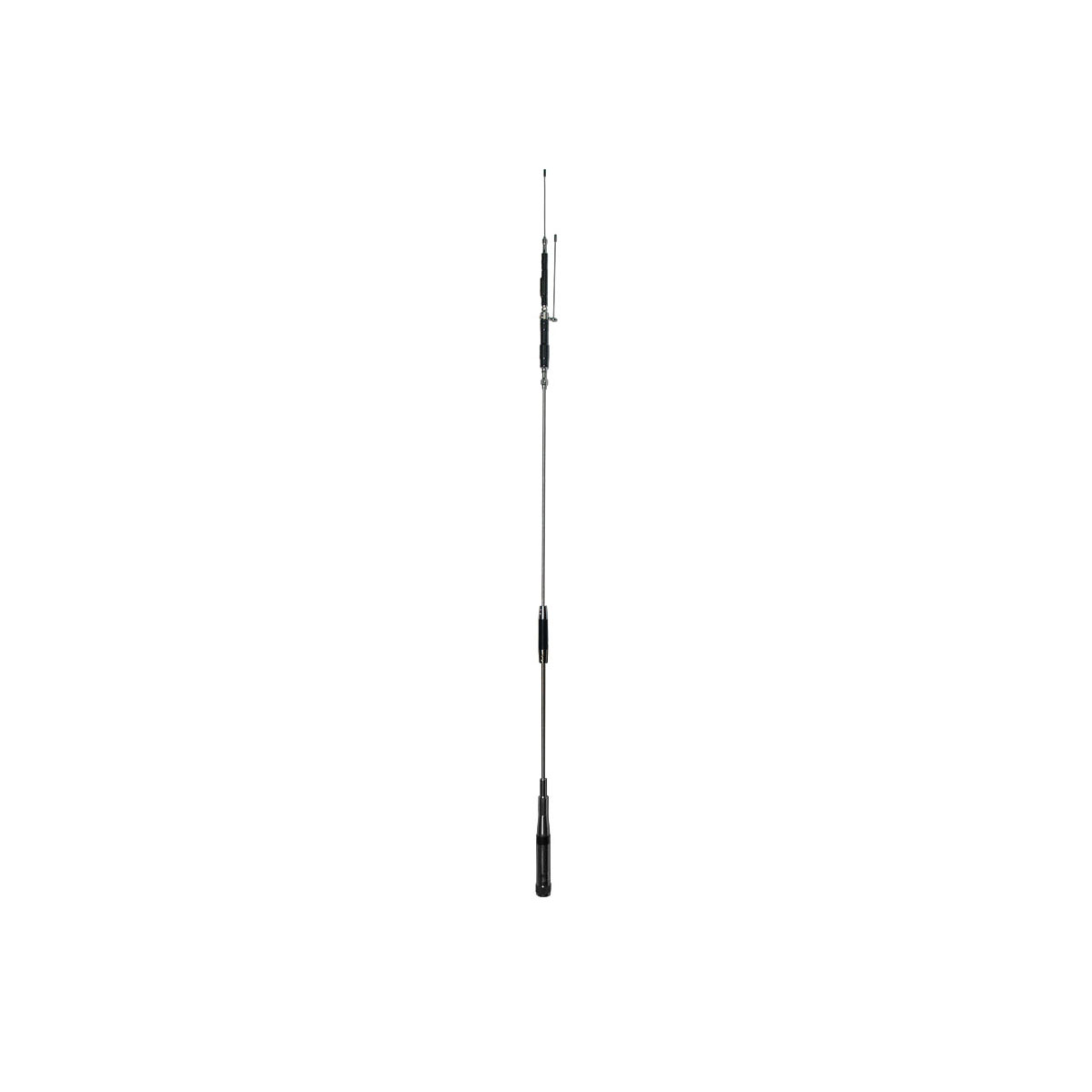

Diamond® HV7A is a mobile antenna system with 5 band capability: 70cm, 2m, 6m, and 2 HF bands. Ideal for users of Icom IC706 series and Yaesu FT100 radios. Addition of MX62M duplexer couples HF/VHF outputs to single coaxial connection. Unlike other multi-band antennas, the HV7A has no moving of connections, switches, jumpers, etc. Fold-over hinge allows for easy access into low over-head buildings.
Special Features:
- Optional Loading Coils available
- No moving of connections, switches or jumpers
- Fold-over hinge
Remarks: Not recommended for use with magnet mounts. Grounding required.
| Weight | 2.05 lbs |
|---|---|
| Dimensions | 52 × 3.25 × 1.5 in |
| Brand | Diamond Antenna |
Product Specifications
| Specifications: | |
| Bands: | 10m/6m/2m/70cm |
| Gain dBi: | 2.15 (10m/6m/2m); 5.5 (70cm) |
| Watts: | HF 120W, VHF 200W |
| Height: | 50″ |
| Connector: | UHF |
| Element Phasing: | f”>1/4l-10/6; 1/2l-2m;2-5/8l-70cm |
