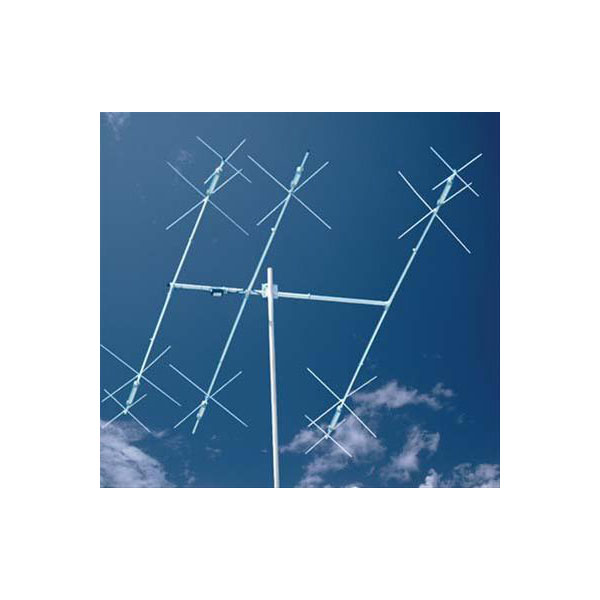

Cushcraft MA-5B Multiband Compact HF Beam Antenna

MPN: MA-5B

$1,180.00

Please note: Due to the size of this antenna, it can only ship via UPS and extra shipping charges will apply.

In stock

SKU: 9032 Category:

Beam, Multiband, 3 Element 10, 12, 15, 17, 20M, 1.2KW PEP

Small Footprint-Big Signal

Cushcraft’s newest multiband HF antenna provides 5 band operation in a package small enough to mount to a tripod. The MA5B is a design that does not sacrifice ruggedness, performance and power handling for size and ease of installation.

  • Easy To Tune: No complicated gamma matches to adjust
  • Low VSWR: Flat response across all 5 bands. VSWR minimum 1.2:1
  • Single Feed Point: Only one coaxial feed line is necessary for all 5 bands
  • Rugged Construction: Cushcraft’s tried and true stainless steel mounting hardware and heavy wall aluminum tubing make for a rugged, long lasting antenna.
  • Easy To Turn: With a boom length of 7 feet and a longest element length of 17 feet, a lightweight TV rotor will do the trick
Weight 31 lbs
Dimensions 85 × 7.5 × 5.5 in
Brand

Cushcraft
Manufacturer Part Number MA-5B

Specifications

Cushcraft MA-5B Specifications
Frequency, Bands
10
12
15
17
20
Elements per Band:
2
1
2
1
2
Gain dBi:
5.3
2
4.8
2
3.6
Front to Back Radio dB:
10
0
12
0
22
Sidelobe Attenuation dB:
25
25
25
25
25
VSWR 2:1 Bandwidth, KHz :
665
>110
255
>100
90
Longest Element:
17.1 ft (5.2m)
Turning Radius:
8.8 ft (2.7m)
Boom Length:
7.3 ft (2.2m)
Boom Diameter:
1.5 in (3.8cm)
Max. Wind Surface Area:
3.22 ft2 (3m2)
Max. Power Watts PEP:
1200 W
Weight:
26.5 lbs (12kg)

Product Guides & Documentation

Cushcraft MA-5B Manual
