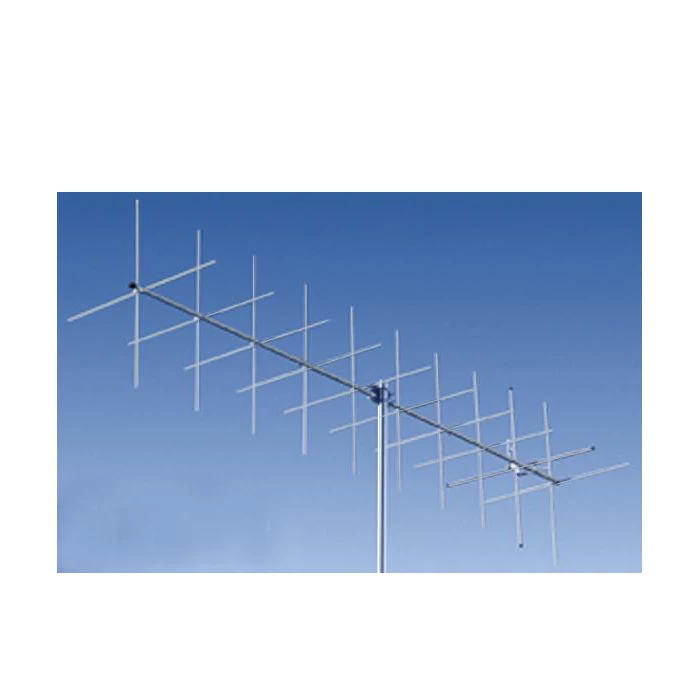

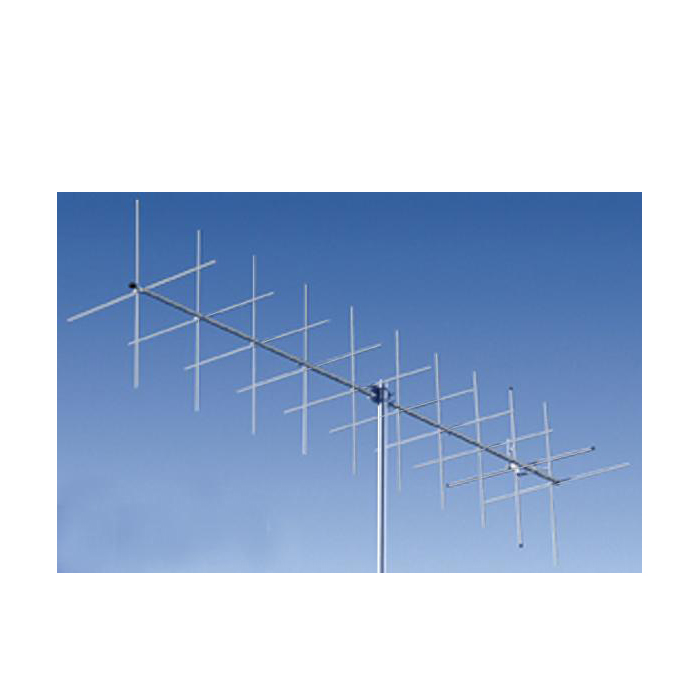

Cushcraft A148-20T 2M Hi-Lo Cross-Yagi Antenna

MPN: A148-20T

$435.00

Please note: Due to the size of this antenna, it can only ship via UPS and extra shipping charges will apply.

Out of Stock (On Order)

SKU: 9273 Category:

2M, CROSS-YAGI, 10/10 ELE, 24DBI, 1KW

Here’s the antenna that solves multi-mode problems!

Ten vertically polarized and ten horizontally polarized elements provide 11.1 dBi gain covering 144-148 MHz. The horizontal elements handle your CW and SSB needs, while the vertical elements cover FM.

Hardware is stainless steel. Separate coax feeds allow polarization changes.

Weight 7.5 lbs
Dimensions 59 × 5 × 2.5 in
Brand

Cushcraft
Manufacturer Part Number A148-20T

Specifications

Cushcraft A148-20T Specifications
Frequency, MHz:
144-148
No. Elements:
10 / 10
Forward Gain, dBi:
13
Front to Back Radio, dB:
24
SWR 1.2:1 Typical
2:1 Bandwidth, MHz
>4
Power Rating, Watts PEP:
1500
3 dB Beamwidth, Degees
E Plane
H Plane
45
50
Side Lobe Atten., dB, E Plane:
40
Boom Length, ft (m):
11 (3.4)
Electrical Wavelength:
1.6
Longest Element, in (cm):
40.6 (103)
Turning Radius, ft (m):
7.5 (2.3)
Mast Size Range, in (cm):
1.25 – 2 (3.2 – 5.1)
Wind Load, ft sq (m sq)
0.39 (0.11)
Weight, lb (kg)
7 (3.15)

Product Guides & Documentation

Cushcraft A148-20T Assembly and Install Instructions
