Alpha Delta Copper Ground Rod Clamps

MPN: UCGC

$87.00

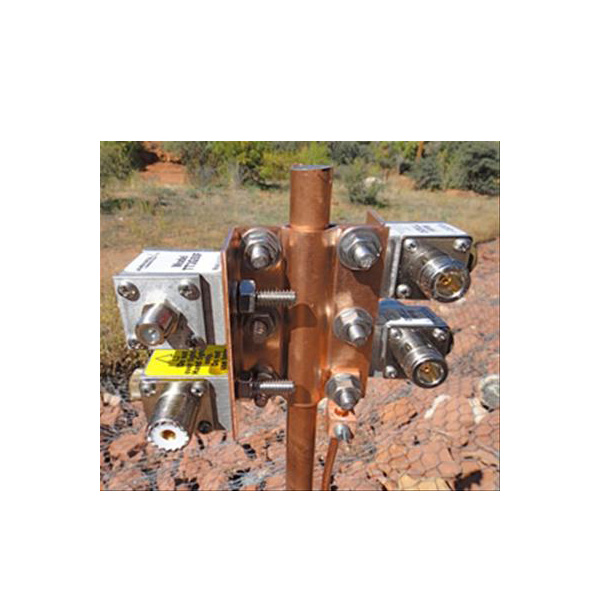

Alpha Delta UCGC Copper Ground Rod Clamps are uniquely formed to attach up to four Alpha Delta ATT or TT series surge protectors, or any stud type flange mount coaxial surge protectors, directly to a 5/8 or 3/4 in. copper ground rod.

In stock

SKU: 7320 Categories: ,

Grounding Clamp Style: Surge protector to ground rod

Grounding Conductor Range: 0.625 in. rod

Ground Strap Clamp Material: Copper

Hardware Included: Yes

Notes: Designed to be used with ATT3G50 surge protectors, sold separately.

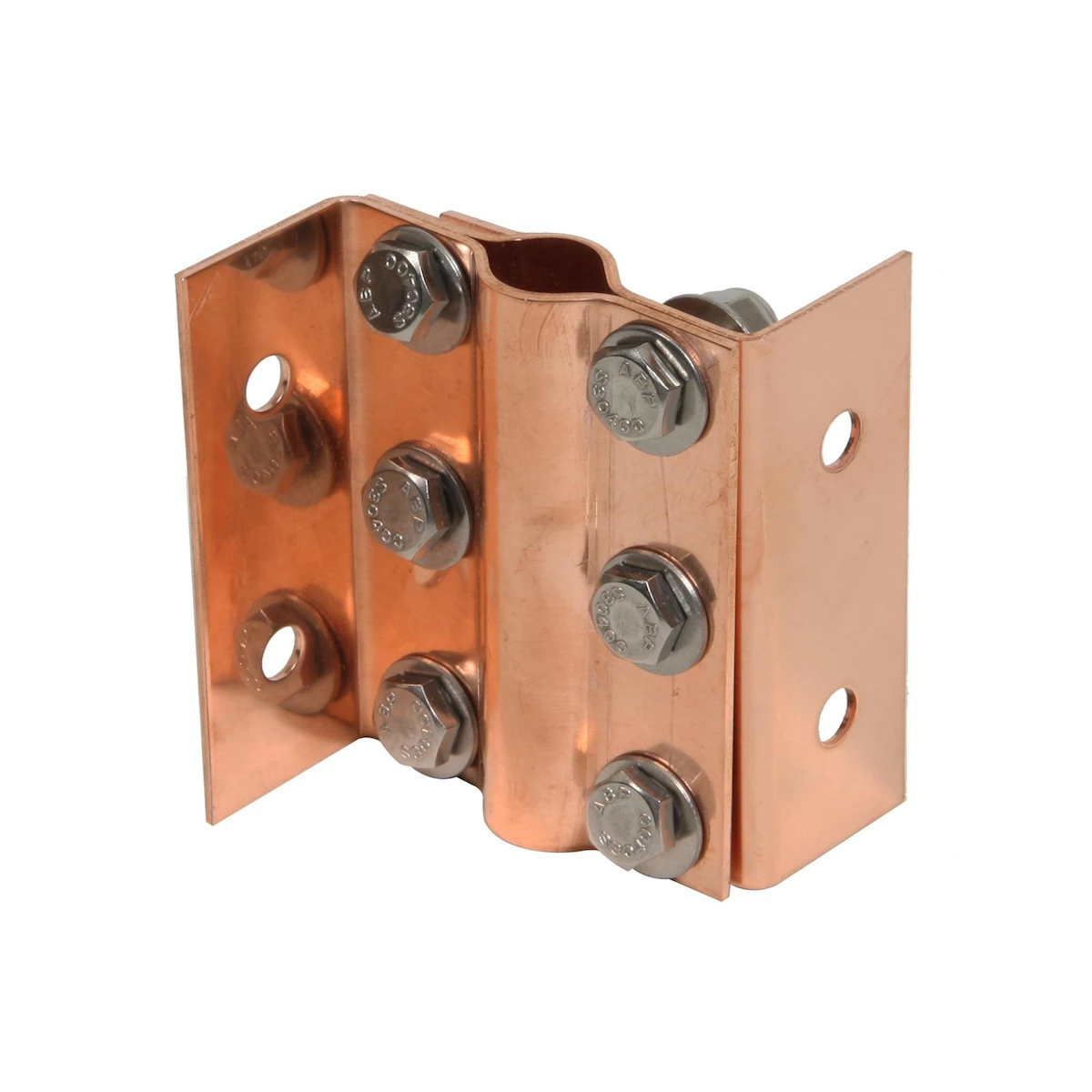

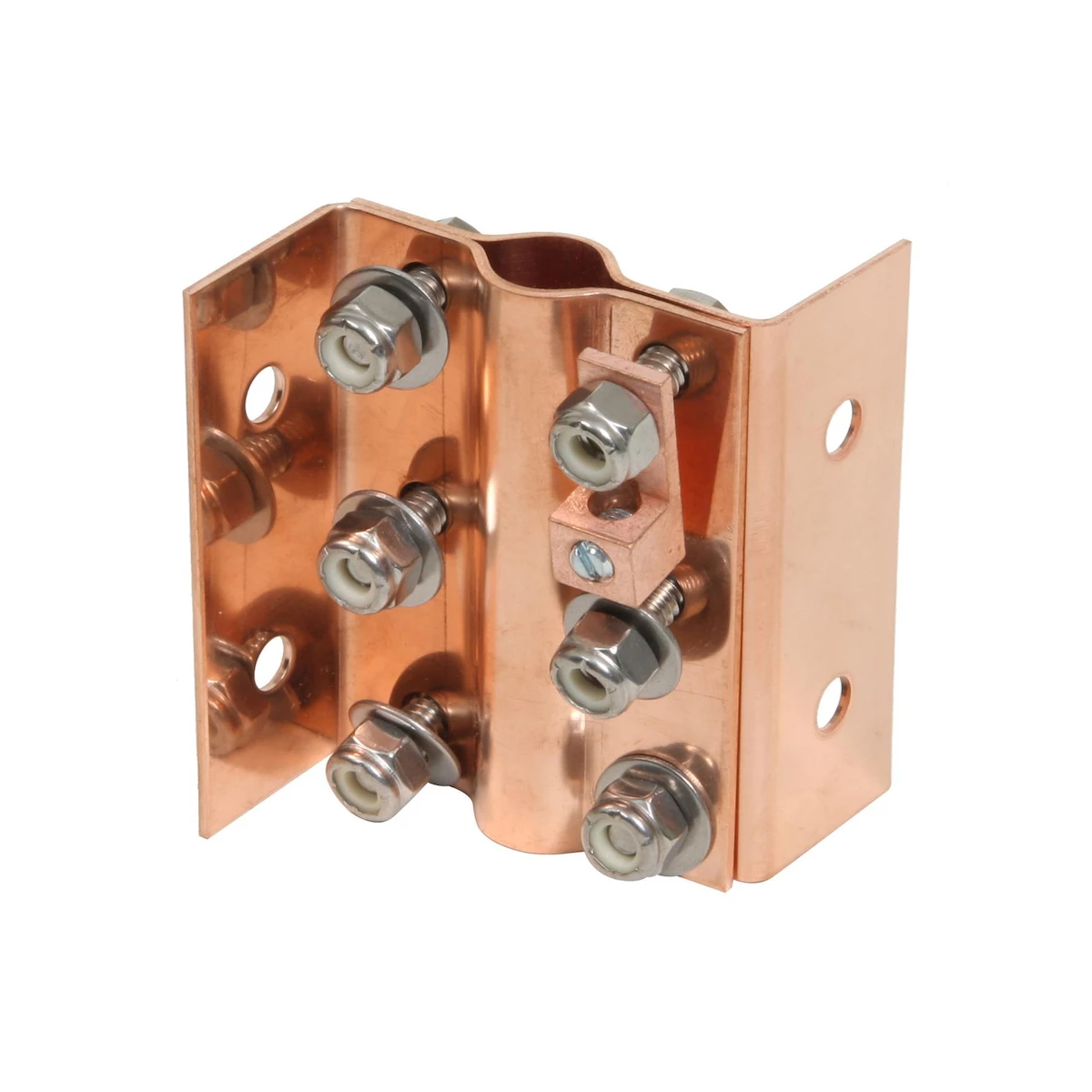

Alpha Delta UCGC Copper Ground Rod Clamps are uniquely formed to attach up to four Alpha Delta ATT or TT series surge protectors, or any stud type flange mount coaxial surge protectors, directly to a 5/8 or 3/4 in. copper ground rod. These clamps are made of solid copper and are provided with stainless steel hardware.

In installations where an enclosure and protector mounting panel are not used, then weather protection or sealing of connectors and protectors is required. Make your grounding installation complete with Alpha Delta UCGC Copper Ground Rod Clamps.

Weight 0.61 lbs
Dimensions 3 × 2.5 × 1.25 in
Manufacturer Part Number UCGC
